Product Overview

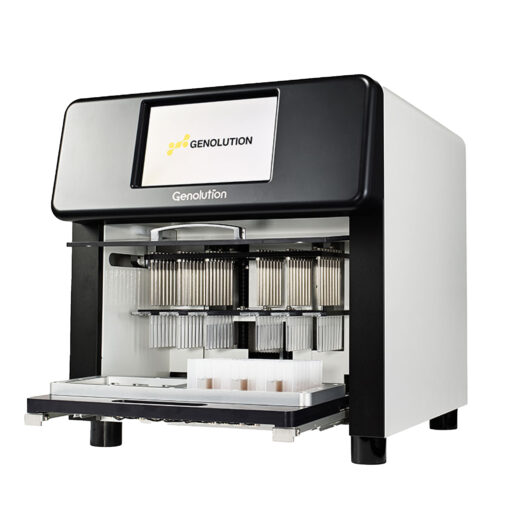

The Genolution Nextractor® NX-48S is a fully automated, magnetic-bead extraction platform for isolating DNA and RNA from a range of sample types. It can process up to 48 samples in one run, reducing manual extraction steps while supporting pre-filled reagent formats for different batch sizes.
The NX-48S uses pre-filled formats for single-sample, 8-sample and 24-sample workflows. Published specifications list 200–400 µL sample input, 50–150 µL elution volume and approximately 15–25 minutes for a 48-sample run. Pre-programmed and user-defined protocols are operated through a 7-inch touchscreen.
Important: Extraction performance, specimen compatibility and downstream suitability depend on the selected reagent kit and validated protocol. Confirm the intended use and regulatory status of the complete instrument, reagent and application workflow for your laboratory and jurisdiction.
48-Sample Capacity
Automates DNA and RNA extraction for up to 48 specimens in a single run.
Approximately 15–25 Minutes
Published throughput is approximately 15–25 minutes for 48 extractions.
Pre-Filled Reagents
Formats for 1, 8 or 24 samples help laboratories match reagent use to each batch.
Key Features
- Fully automated magnetic-bead extraction of DNA and RNA
- Processes up to 48 samples per run
- Approximately 15–25 minutes for 48 extractions
- Pre-filled reagent formats for 1, 8 or 24 samples
- Multiple pre-filled formats can be used without changing the hardware or software format
- 200–400 µL sample input volume
- 50–150 µL elution volume
- Pre-programmed and user-defined protocols
- 7-inch LCD touchscreen
- UV sterilization function, door sensor and door-lock features
- Up to 60 user protocols listed in the current Jant specifications
Product Specifications
| Jant Catalog Number | GNNX48S |
|---|---|
| Model | Nextractor NX-48S |
| Extraction Method | Automated magnetic-bead nucleic acid extraction |
| Maximum Throughput | 48 samples per run |
| Published Run Time | Approximately 15–25 minutes for 48 extractions |
| Reagent Format | Pre-filled formats for 1, 8 or 24 samples |
| Sample Input Volume | 200–400 µL |
| Elution Volume | 50–150 µL |
| User Interface | 7-inch LCD touchscreen |
| Protocol Capacity | Pre-programmed protocols plus up to 60 user protocols |
| Safety / Decontamination | Door lock, door sensor and UV sterilization function |
| Dimensions | 364 mm W × 420 mm D × 386 mm H |
| Weight | 25 kg |
Magnetic-Bead Extraction Workflow
The automated protocol moves magnetic particles through lysis, washing and elution steps. The exact number of washes and processing conditions depend on the selected kit and protocol.
The diagram is a general process overview and is not a substitute for the applicable extraction-kit instructions.
Compare Nextractor Systems
Choose a system based on typical batch size, reagent format and available bench space.
| Model | Samples per Run | Reagent Format | Best Fit |
|---|---|---|---|
| NX-48S | Up to 48 | 1-, 8- and 24-sample pre-filled formats | Established 48-sample extraction workflows |
| NX-48N | 1–48 | 1-, 8- and 24-sample pre-filled formats | Flexible medium- to high-throughput workflows |
| NX-Jr | 1–8 | Individual pre-filled cartridges | Lower-volume labs and compact spaces |
Build the Complete Molecular Workflow
NX-48S Extraction Kits
Review available DNA and RNA extraction kits, sample types and reagent formats for the NX-48S.
Real-Time PCR
Connect nucleic acid extraction with Jant’s standard, custom and pharmacogenomic RT-PCR offerings.
Automated Extraction Systems
Compare platforms for different throughput, reagent and space requirements.
Nextractor NX-48S Demonstration
Documentation and Resources
Nextractor NX-48S BrochureFrequently Asked Questions
The NX-48S can process up to 48 samples in one run.
Genolution lists approximately 15–25 minutes for 48 extractions. The actual run time depends on the selected kit and protocol.
The NX-48S supports pre-filled formats for single-sample, 8-sample and 24-sample workflows. Confirm kit and sample compatibility before ordering.
The published specifications list 200–400 µL sample input and 50–150 µL elution volume. Kit-specific requirements may vary.
Yes. The system includes pre-programmed protocols and supports user-defined protocols. The current Jant specifications list capacity for up to 60 user protocols.
The system supports preparation of nucleic acid for downstream molecular workflows. Laboratories must validate the complete specimen, extraction kit, protocol, assay and instrument combination.
Ordering Information
To place an order or request information, call Jant Pharmacal at 800.676.5565
| Catalog Number | Description | Unit of Measurement |
|---|---|---|
| GNNX48S | Genolution Nextractor NX-48S Automated DNA/RNA Extractor | 1 system |
Extraction reagents, consumables, installation and service items are quoted separately unless specifically included.
