Product Overview

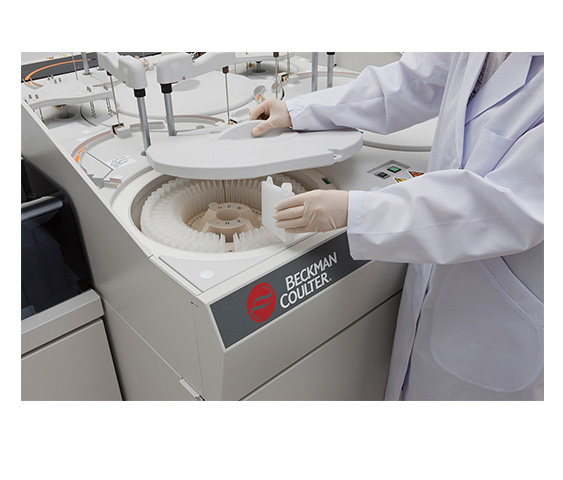

The refurbished Beckman Coulter AU5800 Clinical Chemistry Analyzer is a modular, fully automated, random-access system designed for high- and ultra-high-volume hospital and reference laboratories. The AU5800 family combines continuous rack loading, priority sample handling, refrigerated reagent storage, automated repeat and reflex capabilities, and optional single- or dual-flow-cell indirect ISE testing.
AU5800 systems are available in one- through four-module configurations. Photometric throughput scales from up to 2,000 tests per hour on the AU5810 to up to 8,000 tests per hour on the AU5840. With the optional dual ISE configuration, maximum combined throughput ranges from up to 3,800 to 9,800 tests per hour, depending on the number of analytical modules.
This is a refurbished analyzer. The exact model configuration, number of analytical modules, ISE configuration, software version, automation hardware, included accessories, refurbishment scope, warranty and availability can vary by unit. Confirm the complete offered configuration with Jant Pharmacal before ordering.
2,000–8,000 Photometric Tests/Hour
Scalable throughput across one- to four-module AU5800 configurations.
Up to 9,800 Tests/Hour
Maximum combined throughput on the four-module system with optional dual ISE.
400-Sample Loading Capacity
Two 20-rack input trays support continuous loading of up to 400 tubes.
AU5800 Series Configurations
The AU5800 family uses a modular architecture. Select the configuration according to annual testing volume, peak-hour demand, assay mix, reagent capacity, space, utilities and redundancy requirements.
| Model | Analytical Modules | Photometric Throughput | With Optional Dual ISE | Maximum Simultaneous Analytes |
|---|---|---|---|---|
| AU5810 | 1 | Up to 2,000/hour | Up to 3,800/hour | 57, including ISE |
| AU5820 | 2 | Up to 4,000/hour | Up to 5,800/hour | 111, including ISE |
| AU5830 | 3 | Up to 6,000/hour | Up to 7,800/hour | 120, including ISE |
| AU5840 | 4 | Up to 8,000/hour | Up to 9,800/hour | 120, including ISE |
Combined figures assume the optional dual ISE configuration, which adds up to 1,800 ISE tests per hour. Do not assume that ISE or a particular number of modules is included with a refurbished system unless identified in the quotation.
Key Features
- Fully automated, discrete, random-access clinical chemistry system
- One- to four-module configurations for scalable high-volume testing
- Up to 2,000 photometric tests per hour per analytical module
- Optional single ISE flow cell adds up to 900 tests per hour
- Optional dual ISE flow cells add up to 1,800 tests per hour
- Maximum 400-sample loading capacity in forty 10-position racks
- Priority port accommodates up to 20 samples and routes priority racks ahead of routine racks
- Three-lane sample transport supports delivery, bypass and return routing
- Minimum sample volume of 1.0 µL for applicable programmed methods
- 54 refrigerated R1 and 54 refrigerated R2 bottle positions per analytical module
- Automatic repeat, reflex, predilution, calibration and quality-control capabilities based on laboratory programming
- Liquid-level and clot detection with sample- and reagent-probe collision protection
- Optional connectivity to compatible laboratory automation systems
Designed for High-Volume Core Laboratory Workflow
Continuous Sample Loading
Two removable 20-rack input trays allow up to 400 tubes to be loaded. Universal AU racks can accommodate mixed compatible sample types and tube sizes.
Intelligent Priority Routing
The bypass lane can route priority racks ahead of routine work or bypass analytical modules that do not have a requested test assigned.
Modular Capacity
Add analytical capacity through one-, two-, three- or four-module configurations while maintaining a common AU workflow and reagent environment.
AU5800 or AU680?
Both are automated random-access AU chemistry platforms, but they are designed for different laboratory volumes. The AU680 is a single floor-standing analyzer for mid- to high-volume work. The AU5800 is a modular core-laboratory platform that begins above the AU680 in throughput and scales across four configurations.
| Feature | AU680 | AU5800 Series |
|---|---|---|
| Intended Workflow | Mid- to high-volume laboratory | High- to ultra-high-volume hospital or reference laboratory |
| Photometric Throughput | Up to 800/hour | Up to 2,000–8,000/hour, depending on modules |
| Maximum with ISE | Up to 1,200/hour with optional ISE | Up to 3,800–9,800/hour with optional dual ISE |
| Routine Loading Capacity | Up to 150 samples | Up to 400 samples; 200 when connected as documented to laboratory automation |
| Architecture | Single analyzer platform | One to four analytical modules |
| Reagent Positions | 60 R1 and 48 R2 positions | 54 R1 and 54 R2 positions per module |
Analyzer selection should also consider assay mix, peak-hour workload, turnaround-time targets, available space, water and electrical requirements, staffing, redundancy, automation, software and service support.
Product Specifications
| Jant Catalog Number | AU5800 |
|---|---|
| Product | Refurbished Beckman Coulter AU5800 Clinical Chemistry Analyzer |
| System Type | Fully automated, discrete, random-access modular clinical chemistry analyzer |
| Available Configurations | AU5810, AU5820, AU5830 and AU5840 with one, two, three or four analytical modules |
| Analytical Principles | Spectrophotometry; optional indirect ion-selective electrode measurement |
| Assay Types | Endpoint, rate, fixed-point and optional indirect ISE methods |
| Maximum Simultaneous Analytes | 57 on AU5810; 111 on AU5820; 120 on AU5830 or AU5840, including ISE |
| Photometric Throughput | Up to 2,000 tests per hour per analytical module; 2,000–8,000 tests per hour by configuration |
| Optional ISE Throughput | Up to 900 tests per hour with one flow cell or 1,800 tests per hour with two flow cells |
| Maximum Combined Throughput | Up to 3,800–9,800 photometric and ISE tests per hour, depending on the number of analytical modules and optional dual ISE |
| Sample Types | Serum, plasma, urine and other assay-appropriate fluids with viscosity in the same range as serum |
| Routine Sample Capacity | Maximum 400 samples in forty 10-position racks; maximum 200 samples when connected to laboratory automation as documented in the IFU |
| Priority Port | Up to 20 samples; also supports priority QC and calibrator racks |
| Minimum Sample Volume | 1.0 µL; available range depends on the programmed predilution setting |
| Reagent Capacity | 54 R1 and 54 R2 refrigerated bottle positions per analytical module |
| Reagent Storage | Refrigerated at 4–12°C |
| Reagent Dispensing | 10–170 µL per programmed step; maximum total reagent volume 270 µL |
| Reaction Volume | 80–287 µL |
| Reaction System | Dry-bath incubation at 37 ± 0.3°C; glass square cuvettes; maximum reaction time 8 minutes, 40 seconds |
| Photometry | Mono- or bichromatic multi-wavelength spectrophotometry; 13 wavelengths from 340–800 nm |
| Optional ISE Parameters | Sodium, potassium and chloride in serum or urine |
| Connectivity | RS232C and TCP/IP host communication; optional laboratory automation connecting kit |
| U.S. Electrical Requirement | 208 V, 50/60 Hz; maximum rated consumption from 6 kVA for one module to 12 kVA for four modules |
| Condition | Refurbished; exact model, modules, ISE configuration, software, automation hardware and included accessories must be confirmed at time of quotation |
| Unit of Measurement | Each system |
Specifications describe the AU5800 platform family. Refurbished inventory may differ by model, serial number, software version, installed options, automation configuration and included components. Confirm the offered system before purchase.
AU Chemistry Reagents and Laboratory Resources
Explore available chemistry and toxicology reagent options, open-channel resources and complimentary ROI support when evaluating an AU5800 workflow.
View Reagents for AU Analyzers View Chemistry Open-Channel Reagents Request an ROI ProposalReagent compatibility, application parameters, regulatory status, calibration, quality control and laboratory verification or validation requirements are assay- and configuration-specific. A link to a reagent page does not indicate universal compatibility with every AU5800 configuration.
What to Confirm Before Ordering
Exact System Configuration
- Exact model: AU5810, AU5820, AU5830 or AU5840
- Serial number and number of analytical modules
- Single, dual or no ISE flow-cell configuration
- Software version and controller computer
- Stand-alone or automation-connected configuration
- Included racks, printer, water system and accessories
Site, Implementation and Support
- Floor-loading, footprint and service-clearance requirements
- Electrical, deionized-water, drain, exhaust and HVAC requirements
- Delivery, rigging and installation responsibilities
- Operational qualification and operator training
- LIS, middleware, automation and cybersecurity requirements
- Refurbishment records, warranty and available service coverage
Important Product Information
- The AU5800 is intended for professional in vitro diagnostic laboratory use.
- The page describes the AU5800 family; do not assume a specific module count or ISE configuration unless it is stated in the quotation.
- Chemistry, toxicology, therapeutic drug monitoring and specialty testing capabilities depend on the applicable assays, reagents, calibrators, controls and analyzer applications.
- Each laboratory is responsible for verification or validation required by assay labeling, laboratory procedures and applicable regulations.
- Automation connectivity requires compatible hardware, software, interfaces and site planning; the optional connecting kit should not be assumed.
- Installation requires appropriate structural support, electrical service, deionized-water supply, drainage, exhaust, HVAC capacity and service clearance.
- Specifications and included components may vary among refurbished systems. Confirm the exact model, serial number, modules, ISE, software, accessories, warranty and support terms before purchase.
- Beckman Coulter and AU names and trademarks belong to their respective owner. Jant Pharmacal is offering a refurbished system and does not represent it as newly manufactured equipment.
Documentation and Resources
Review the AU5800 documentation for complete operating instructions, safety information, specifications, maintenance procedures and automation requirements.
AU5800 Product Brochure AU5800 Instructions for Use AU5800 Reference Manual Laboratory Automation Connecting KitFrequently Asked Questions
The AU5800 is a modular, fully automated, random-access clinical chemistry system designed for high- and ultra-high-volume hospital and reference laboratories. The family includes one- through four-module configurations.
The model number identifies the number of analytical modules. The AU5810 has one module, the AU5820 has two, the AU5830 has three and the AU5840 has four. Each module contributes up to 2,000 photometric tests per hour, so maximum photometric throughput scales from 2,000 to 8,000 tests per hour.
Photometric throughput ranges from up to 2,000 tests per hour on an AU5810 to up to 8,000 on an AU5840. With optional dual ISE, maximum combined throughput ranges from up to 3,800 to 9,800 tests per hour, depending on the model.
ISE is optional and can be configured with one or two flow cells. Confirm whether ISE is installed, how many flow cells are present and whether the complete ISE system is operational on the specific refurbished unit offered.
The standard rack-feeder configuration supports up to 400 samples in forty 10-position racks. The documented maximum is 200 samples when the AU5800 is connected to laboratory automation. A separate priority port accommodates up to 20 samples.
Each analytical module provides 54 refrigerated R1 and 54 refrigerated R2 bottle positions. The number of simultaneous analytes is up to 57 on the AU5810, 111 on the AU5820 and 120 on the AU5830 or AU5840, including ISE.
The AU680 is a single analyzer with up to 800 photometric tests per hour and capacity for up to 150 routine samples. The AU5800 is a modular high-volume system that begins at up to 2,000 photometric tests per hour and scales to 8,000, with up to 400 samples loaded in its standard rack-feeder configuration.
The AU5800 can support applicable therapeutic drug monitoring, drugs-of-abuse and other homogeneous assay applications. Actual testing capability depends on the selected reagents, application parameters, regulatory status, calibration, quality control and laboratory verification or validation.
The platform permits laboratories to configure assay parameters. Compatibility, application settings, calibration, quality control, regulatory status and validation requirements are reagent-specific. Review the applicable reagent and analyzer documentation before implementing an open-channel method.
The AU5800 supports an optional laboratory automation connecting kit. Compatibility depends on the analyzer configuration, installed hardware and software, interface requirements and the specific automation system. Confirm the offered system before describing it as automation-ready.
Confirm the exact model, serial number, number of analytical modules, ISE configuration, software and controller, automation hardware, included accessories, refurbishment and maintenance records, site requirements, installation, training, warranty and service coverage.
Yes. Jant Pharmacal can help review reagent options, testing volume, workflow and open-channel requirements and can prepare a complimentary ROI proposal.
Ordering Information
To request current availability, an exact system configuration or a quote, call Jant Pharmacal at 800.676.5565
| Catalog Number | Description | Unit of Measurement |
|---|---|---|
| AU5800 | Refurbished Beckman Coulter AU5800 Clinical Chemistry Analyzer | Each system |
Refurbished inventory and configurations are subject to availability. Confirm the AU5810, AU5820, AU5830 or AU5840 model, module count, ISE configuration, software, automation hardware, included accessories, installation, training, warranty and service coverage when requesting a quote.
