Product Overview

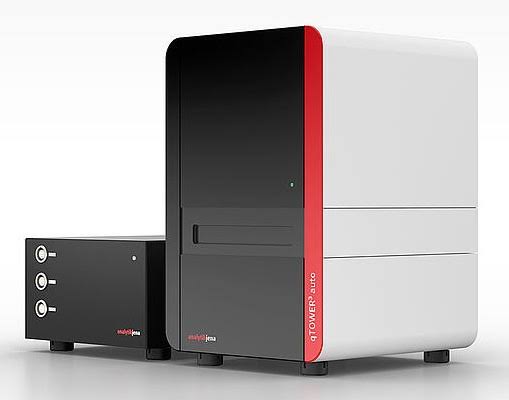

The Analytik Jena qTOWER³ auto Series brings real-time PCR into automated laboratory workflows. Its freely accessible sample tray, motorized drawer and plate lifter, labware detection and separate power module are designed to support integration with compatible plate handlers and liquid-handling systems.
The series includes the 96-well qTOWER³ auto and the higher-throughput 384-well qTOWER³ 84 auto. Both systems combine precise thermal control with fiber-optic fluorescence detection, a six-second plate readout and configurable optical modules for multiplex qPCR applications.
The instrument can be controlled with qPCRsoft auto or integrated into a compatible automation environment through supported software interfaces. The robotic arm, plate handler, liquid handler, sealer, computer, integration engineering, validation services and optional software modules are separate unless specifically included in the Jant Pharmacal quotation. This product is presented for research use and is not presented as an in vitro diagnostic system.
Automation-Ready Design
An accessible sample tray, motorized loading components and a separate power module support integration into compatible robotic workflows.
96- or 384-Well Throughput
Choose a 96-well gold-coated silver block or a 384-well aluminum-alloy block to match sample volume and throughput needs.
Workflow Safeguards
Sensor-based labware detection checks plate loading, while the motorized plate lifter helps release the plate safely after a run.
Key Features
- Automated real-time PCR platform for compatible robotic and liquid-handling workflows
- Available with a 96-well or 384-well sample block
- Freely accessible microplate tray for robotic plate placement or connection to an automated transport system
- Motorized drawer and plate lifter for controlled loading and unloading
- Sensor-based labware detection to identify an improperly loaded plate
- Decoupled power module for flexible placement within an automation deck
- Compatible with common plate handlers and automation systems, subject to integration review
- Fiber-optic fluorescence detection with photomultiplier tube detector
- Complete 96- or 384-well plate readout in approximately six seconds, independent of the number of measured dyes
- Six optical positions with changeable color, FRET and protein modules
- Multiplex detection of up to six targets with the appropriate module configuration
- No periodic optical calibration specified by the manufacturer
- PC control with qPCRsoft auto and multiple data-export options
- Optional software module with features that support 21 CFR Part 11 workflows
Compare qTOWER³ auto Models
Select the plate format and throughput appropriate for the automated qPCR workflow.
| Model | Jant Catalog Number | Capacity | Sample Volume | Sample Block |
|---|---|---|---|---|
| qTOWER³ auto (230 V) | AJ844-00603-2 | 96 wells | 5–100 µL | Gold-coated silver |
| qTOWER³ 84 auto (230 V) | AJ844-00604-2 | 384 wells | 2–30 µL | Aluminum special alloy |
The current manufacturer product page lists the 230 V configurations shown above and states that 100 V and 115 V versions are also available. Confirm the required voltage, plug configuration, current catalog number and availability with Jant before ordering.
Designed for Automated qPCR Workflows
1. Load
A compatible robotic arm or plate-transport system positions a 96- or 384-well microplate on the accessible sample tray.
2. Verify and Run
Labware detection monitors plate loading before automated thermal cycling and fluorescence acquisition proceed.
3. Release
After the run, the motorized plate lifter releases the microplate from the block for compatible automated unloading.
A complete automation workflow requires compatible hardware, software communication, gripper and plate-clearance evaluation, error handling and site-specific integration testing. Compatibility should be confirmed before purchase.
Technical Specifications
| Specification | qTOWER³ auto | qTOWER³ 84 auto |
|---|---|---|
| Block Capacity | 96 wells | 384 wells |
| Sample Block | Gold-coated silver | Aluminum special alloy |
| Proposed Sample Volume | 5–100 µL | 2–30 µL |
| Maximum / Average Heating | 8°C/s / 7°C/s | 4°C/s / 3.7°C/s |
| Maximum / Average Cooling | 5.5°C/s / 4.5°C/s | 2°C/s / 1.7°C/s |
| Temperature Range | 4–99°C | |
| Temperature Accuracy | ±0.1°C | |
| Temperature Uniformity | ±0.15°C at 55°C after 15 seconds | |
| Heated Lid | 30–110°C; automatic contact pressure corresponding to 30 kg | |
| Optical Scanner | Fiber-optic shuttle with 8 optical fibers | Fiber-optic shuttle with 16 optical fibers |
| Detector | Photomultiplier tube (PMT) | |
| Plate Readout | Approximately 6 seconds for 96 wells | Approximately 6 seconds for 384 wells |
| Optical Configuration | Six positions; compatible selection of color, FRET and protein modules | |
| Multiplex Capacity | Up to six targets with the appropriate optical modules and assay design | |
| Plate Handling | Motorized drawer and plate lifter with labware detection | |
| Instrument Dimensions | 310 mm W x 365 mm D x 479 mm H with drawer closed | |
| Required Space | 310 mm W x 477 mm D x 479 mm H with drawer open | |
| External Power Module | 290 mm W x 335 mm D x 186 mm H | |
| Control and Connectivity | PC control with qPCRsoft auto; USB and Ethernet interfaces | |
Specifications are based on the current Analytik Jena product page and the supplied qTOWER³ auto brochure. Configuration, software, automation interfaces, included modules and availability may change. Confirm the quoted system and current documentation before purchase.
Flexible Detection and Data Handling
Configurable Optics
Six optical positions accept compatible color, FRET and protein modules. The installed module set should be selected for the dyes used by the laboratory’s assays.
qPCRsoft auto
The software supports instrument control, fluorescence acquisition, common quantification methods, melting-curve analysis, reporting and multiple export formats.
Data Integrity Options
An optional software module adds electronic signatures, audit trails, time and date stamps and role-based controls that can support regulated workflows.
Software functionality alone does not establish compliance. Each laboratory is responsible for system qualification, validation, procedures, security controls and regulatory compliance.
Build the qPCR Workflow
Explore related Jant molecular-testing resources when planning an instrument, assay and reagent workflow.
RT-PCR Analyzers
Compare real-time PCR instrumentation available through Jant.
View RT-PCR AnalyzersStandard RT-PCR Panels
Browse standard multiplex panel configurations for compatible workflows.
View Standard PanelsCustom Pre-Plated Panels
Explore custom pre-plated RT-PCR panel options for laboratory-developed workflows.
View Custom PanelsThese links are provided for workflow planning and do not establish assay compatibility. Confirm dyes, optical modules, plate format, reaction volume, cycling conditions, software requirements, intended use and laboratory validation before use.
Need a stand-alone qPCR platform? View the qTOWER³ Real-Time PCR Thermal Cycler.
Important Configuration Information
- The qTOWER³ auto is an automation-capable thermal cycler; a robotic arm, liquid handler, plate handler, transport system and plate sealer are not included unless listed in the quotation.
- Confirm instrument voltage, plug configuration and site power before ordering.
- Confirm which optical modules, software licenses, computer hardware, cables, accessories, installation, training and service coverage are included.
- Automation compatibility depends on physical clearances, plate and seal geometry, gripper design, communications, scheduling software and site-specific integration.
- Assay compatibility must be evaluated for dyes, optical channels, reaction volume, consumables, cycling protocol, analysis settings and intended use.
- For research use only. Not for use in diagnostic procedures.
Documentation and Resources
Review the product brochure for system features, dimensions, technical specifications and optical-module information.
qTOWER³ auto Series BrochureFrequently Asked Questions
The qTOWER³ auto uses a 96-well gold-coated silver block with a proposed sample volume of 5–100 µL. The qTOWER³ 84 auto uses a 384-well aluminum-alloy block with a proposed sample volume of 2–30 µL for higher-throughput workflows.
No. The qTOWER³ auto is designed for integration with compatible automation equipment, but the robotic arm, liquid handler, plate handler, transport system and related integration services are separate unless specifically included in the quotation.
Sensor-based labware detection monitors the sample chamber for an improperly loaded plate. The automation workflow still requires appropriate system integration, error handling and validation.
The instrument provides six optical positions and can support multiplex detection of up to six targets when configured with the appropriate optical modules, assay dyes and analysis settings.
An optional qPCRsoft module provides features designed to support 21 CFR Part 11 workflows, including electronic signatures, audit trails, time and date stamps and role-based user controls. The laboratory remains responsible for qualification, validation, procedures and overall compliance.
Yes. Contact Jant to review plate format, throughput, voltage, automation hardware, integration requirements, dyes, optical modules, software and service needs before a quotation is prepared.
Product Details
Place an order or request a configuration review by calling 800.676.5565
Please confirm voltage, automation requirements, optical modules, software and included accessories when requesting a quote.
| Catalog Number | Description | Unit of Measure |
|---|---|---|
| AJ844-00603-2 | qTOWER³ auto Automated Real-Time PCR System, 96-Well, 230 V | Each |
| AJ844-00604-2 | qTOWER³ 84 auto Automated Real-Time PCR System, 384-Well, 230 V | Each |
The manufacturer also identifies 100 V and 115 V versions. Contact Jant for the appropriate catalog number, current availability and a complete system quotation.
