qTOWER iris Series Real-Time PCR Thermal Cyclers

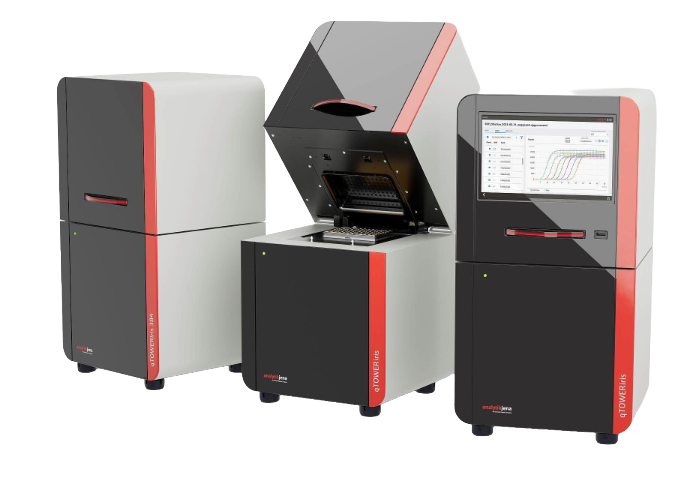

Analytik Jena qTOWER iris real-time PCR thermal cycler series

The Analytik Jena qTOWER iris Series includes open 96-well, 96-well touchscreen and 384-well real-time PCR thermal cyclers for research applications. Standard and UV-ready configurations provide flexible color modules, up to six-target multiplexing, six-second plate readout, precise gradient control and PC or touchscreen operation. Contact Jant Pharmacal to select the appropriate block format, control method, UV-A capability and optical configuration.

Request Info Request Quote
  • This field is for validation purposes and should be left unchanged.
  • This field is hidden when viewing the form
  • This field is hidden when viewing the form
  • This field is hidden when viewing the form
    Leave the box checked if you wish to receive occasional special offer emails, or uncheck it to decline. Don't worry, we won't spam you.
  • This field is hidden when viewing the form
  • This field is hidden when viewing the form
  • This field is hidden when viewing the form
    Leave the box checked if you wish to receive occasional special offer emails, or uncheck it to decline. Don't worry, we won't spam you.

Product Overview

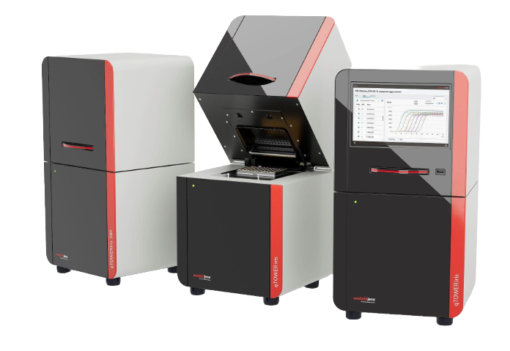

The Analytik Jena qTOWER iris Series is a family of open real-time PCR thermal cyclers available in 96-well, 96-well touchscreen and 384-well configurations. Each platform supports flexible fluorescence detection with individually selectable color modules and multiplexing of up to six targets.

The 96-well systems use a gold-coated silver sample block and are available with PC control or an integrated 10-inch touchscreen. The qTOWER iris 384 uses an aluminum-alloy block for higher-throughput workflows and is controlled from a compatible PC. Standard and UV-ready versions are available for each model family.

Each listed configuration includes color module 1 according to the current manufacturer ordering information. Additional color modules, the UV-A color module, optional software modules, computer hardware, installation and service coverage must be confirmed in the Jant Pharmacal quotation. Jant presents the qTOWER iris Series for research applications; it is not presented as an in vitro diagnostic system.

96- or 384-Well Formats

Choose a 96-well system for flexible routine qPCR or a 384-well platform for higher-throughput research workflows.

Up to Six-Target Multiplexing

Six optical positions accept a flexible selection of color modules covering UV-A through near-infrared wavelengths.

Six-Second Plate Readout

The fiber-optic shuttle reads a complete 96- or 384-well plate in approximately six seconds, independent of the number of dyes.

Key Features

  • Real-time PCR amplification and fluorescence detection for compatible DNA or RNA research workflows
  • Available in 96-well and 384-well formats
  • PC-controlled, integrated-touchscreen and high-throughput configurations
  • Standard and UV-ready versions of all three instrument formats
  • Up to six installed color modules and six-target multiplexing
  • Seven available color modules spanning UV-A through near-infrared wavelengths, plus a protein module
  • Seven-chip long-life power LED and sensitive photomultiplier tube detection
  • Approximately six-second readout for a complete 96- or 384-well plate
  • 96-well heating rates up to 8°C/s; 384-well heating rates up to 4°C/s
  • Temperature uniformity of ±0.15°C at 55°C after 15 seconds
  • Linear Gradient Tool for assay optimization across 12 or 24 columns
  • Factory-calibrated optical system; dye changes do not routinely require recalibration
  • Open platform for compatible consumables, reagents, assays and dyes
  • USB and Ethernet connectivity

Compare qTOWER iris Models

Select the block capacity, control format and UV-A readiness appropriate for the laboratory’s research workflow.

Model Jant Catalog Number Block Capacity Control UV-A Configuration
qTOWER iris AJ844-00853-2 96 wells PC with qPCRsoft Standard; upgrade path to UV should be confirmed
qTOWER iris UV ready AJ844-00854-2 96 wells PC with qPCRsoft Prepared for UV-A applications; UV-A module sold separately unless quoted
qTOWER iris touch AJ844-00855-2 96 wells Integrated 10-inch touchscreen and PC software Standard; upgrade path to UV should be confirmed
qTOWER iris touch UV ready AJ844-00856-2 96 wells Integrated 10-inch touchscreen and PC software Prepared for UV-A applications; UV-A module sold separately unless quoted
qTOWER iris 384 AJ844-00858-2 384 wells PC with qPCRsoft Standard; upgrade path to UV should be confirmed
qTOWER iris 384 UV ready AJ844-00859-2 384 wells PC with qPCRsoft Prepared for UV-A applications; UV-A module sold separately unless quoted

The manufacturer product page identifies these cataloged configurations as 230 V models supplied with color module 1. Confirm voltage, plug configuration, included color module and current availability with Jant before ordering.

Designed for Flexible qPCR Research

Modular Optics

The fiber-optic shuttle excites and detects each well individually. Six module positions can be configured from seven available color modules and a protein module.

Precise Thermal Control

Temperature control accuracy is specified at ±0.1°C, with uniformity of ±0.15°C at 55°C after 15 seconds.

qPCRsoft Analysis

The redesigned qPCRsoft platform supports common qPCR analysis methods, reporting, user management and optional 21 CFR Part 11 functionality.

Technical Specifications

Specification qTOWER iris / qTOWER iris touch qTOWER iris 384
Sample Block Gold-coated silver block Aluminum-alloy block
Capacity 96 wells; compatible 0.1 mL and 0.2 mL consumables 384-well microplates with optical sealing foil
Sample Volume 5–100 µL 2–30 µL; 5–20 µL recommended
Maximum / Average Heating 8°C/s / 7°C/s 4°C/s / 3°C/s
Maximum / Average Cooling 5.5°C/s / 4.5°C/s 2°C/s / 1.5°C/s
Temperature Range 4–99°C
Temperature Accuracy ±0.1°C
Temperature Uniformity ±0.15°C at 55°C after 15 seconds
Gradient 0.1–40°C across 12 columns 0.1–24°C across 24 columns
Heated Lid 30–110°C; automated contact pressure corresponding to 30 kg
Optical Scanner Fiber-optic shuttle with eight-fold scanner Fiber-optic shuttle with 16-fold scanner
Light Source Seven-chip long-life power LED
Detector Photomultiplier tube (PMT)
Optical Positions Six positions; configurable from seven available color modules and a protein module
Multiplex Capacity Up to six targets; no passive reference required by the instrument
Plate Readout Approximately six seconds, independent of the number of dyes
Control PC; qTOWER iris touch also includes integrated 10-inch touchscreen PC
Connectivity USB and Ethernet
Instrument Dimensions 30.4 cm W x 31.5 cm D x 58.7 cm H
Required Operating Space Approximately 30.4 cm W x 47.7 cm D x 61.3 cm H

Specifications are based on the Analytik Jena qTOWER iris Series product page and February 2026 brochure. Configuration, included modules, software, voltage, accessories and availability may change. Confirm the quoted system and current manufacturer documentation before purchase.

Available Color Modules

Color modules are selected according to the assay’s dyes and detection requirements. The instruments provide six optical positions, so the installed module set must be specified when ordering.

Module Channel Excitation / Emission Example Dye
Color module 1 Blue 455 ±15 nm / 515 ±10 nm FAM
Color module 2 Green 520 ±10 nm / 560 ±15 nm JOE
Color module 3 Yellow 550 ±10 nm / 585 ±10 nm ATTO 550
Color module 4 Orange 580 ±10 nm / 620 ±15 nm ROX
Color module 5 Red 625 ±10 nm / 670 ±15 nm Cy5
Color module 6 Near infrared 660 ±10 nm / 710 ±20 nm Cy5.5
Color module 7 UV-A 375 ±15 nm / 475 ±15 nm ATTO 390

Example dyes are taken from the manufacturer brochure. The selected module, assay dye, spectral properties, crosstalk requirements and software settings must be evaluated together. UV-A operation requires a UV-ready or appropriately upgraded instrument and the applicable UV-A color module.

Explore Jant Real-Time PCR Resources

Explore Jant Pharmacal’s molecular extraction products, real-time PCR resources, standard multiplex panels and custom pre-plated research panels.

Explore Molecular Extraction Explore Real-Time PCR View Standard Multiplex Panels View Custom Pre-Plated Panels

These links are provided for workflow exploration and do not establish compatibility with a particular qTOWER iris configuration. Confirm optical modules, fluorophores, cycling parameters, reaction volume, consumables, software, intended use and laboratory validation requirements before implementing an assay.

Important Product Information

  • Jant presents the qTOWER iris Series for research applications and does not present these configurations as in vitro diagnostic systems.
  • The six ordering configurations listed on this page are the current 230 V versions shown by Analytik Jena. Confirm the required voltage and plug before ordering.
  • Each listed instrument includes color module 1 according to manufacturer ordering information; additional modules are not included unless quoted.
  • A UV-ready instrument is prepared for UV-A applications but does not automatically include color module 7.
  • The instrument has six optical positions even though seven color modules and a protein module are available.
  • Only the qTOWER iris touch configurations include the integrated 10-inch touchscreen.
  • The 96-well and 384-well systems have different block materials, consumables, reaction volumes, ramp rates and gradient ranges.
  • The optional 21 CFR Part 11 software module requires compatible qPCRsoft licensing and does not by itself make a laboratory compliant.
  • Confirm computer requirements, installed modules, software, accessories, installation, training, warranty and service coverage in the quotation.

Documentation and Resources

Contact Jant Pharmacal for current qTOWER iris product literature, software information and documentation applicable to the quoted configuration.

qTOWER iris Series Brochure

Frequently Asked Questions

The standard qTOWER iris is a PC-controlled 96-well system. The qTOWER iris touch adds an integrated 10-inch touchscreen for stand-alone operation. The qTOWER iris 384 provides a 384-well block for higher-throughput research and is PC-controlled. Each format is available in a standard or UV-ready version.

UV-ready configurations are prepared for applications in the UV-A wavelength range. The UV-A color module is not automatically included because the listed instruments include color module 1. Confirm the required module configuration when ordering.

The instrument provides six optical positions. The installed set can be selected from seven available color modules and a protein module, subject to the instrument configuration and application requirements.

The qTOWER iris supports up to six-target multiplexing when the installed modules, dyes, assay design, chemistry and software settings are compatible.

The manufacturer states that the instrument does not require a passive reference for optical normalization. An assay formulation may nevertheless include a reference dye or have other specific requirements, so follow the applicable assay instructions.

The 96-well models accept compatible 96-well plates, 8-well strips and individual 0.1 mL or 0.2 mL tubes with appropriate optical caps or sealing films. Plate profile and skirt configuration should be confirmed before use.

The manufacturer brochure states that one PC can operate up to four qTOWER iris instruments. Confirm current software, network and computer requirements for the intended installation.

An optional 21 CFR Part 11 module is available for compatible qPCRsoft versions and includes functions such as audit trails, electronic signatures and user management. Compliance depends on the complete validated system and the laboratory’s procedures, not the software module alone.

Compatibility must be evaluated for the exact panel and instrument configuration. Confirm the installed optical modules, dyes, cycling protocol, reaction volume, consumables, software and research-use requirements. A link to a Jant category does not establish compatibility or validation.

Identify the required plate format, touchscreen preference, UV-A requirement, voltage, fluorophores, number of optical channels, throughput and software needs. Jant can then confirm the appropriate model, included color modules, computer requirements, accessories, installation, training, warranty and support.

Ordering Information

To confirm current availability, configure a system or request a quote, call Jant Pharmacal at 800.676.5565

Catalog Number Description Block Capacity Unit of Measurement
AJ844-00853-2 qTOWER iris, 230 V, including color module 1 96 wells Each
AJ844-00854-2 qTOWER iris, UV ready, 230 V, including color module 1 96 wells Each
AJ844-00855-2 qTOWER iris touch, 230 V, including color module 1 96 wells Each
AJ844-00856-2 qTOWER iris touch, UV ready, 230 V, including color module 1 96 wells Each
AJ844-00858-2 qTOWER iris 384, 230 V, including color module 1 384 wells Each
AJ844-00859-2 qTOWER iris 384, UV ready, 230 V, including color module 1 384 wells Each

Confirm voltage, plug, control format, UV-A readiness, installed color modules, computer and software requirements, accessories, installation, training, warranty and service coverage when requesting a quote.
