Product Overview

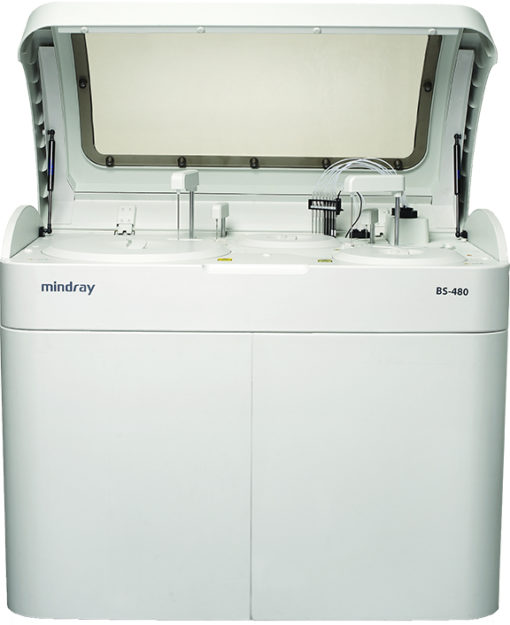

The Mindray BS-480 Chemistry Analyzer is a floor-standing, fully automated, discrete random-access clinical chemistry system for medium- to high-volume laboratories. It provides constant photometric throughput of up to 400 tests per hour and supports general chemistry and compatible drugs-of-abuse testing workflows.
The analyzer provides 90 sample positions, including 60 barcode-readable positions, and 80 reagent positions. Samples and reagents can be added or removed while the system is operating. Automated liquid-level and clot or aggregate detection, probe collision protection, refrigerated reagent storage and bidirectional LIS connectivity support routine laboratory workflow.
Jant catalog number MTBS480 identifies the BS-480 listing. Contact Jant Pharmacal to confirm current analyzer availability, the included configuration, optional ISE module, chemistry and toxicology assay menu, open-channel requirements, installation, training, warranty and service coverage.
400 Tests per Hour
Constant photometric throughput for medium- to high-volume chemistry and compatible toxicology workflows.
90 Sample Positions
Provides 90 total sample positions, including 60 positions with barcode-reading capability.
80 Reagent Positions
Refrigerated reagent storage with access to samples and reagents during operation.
Key Features
- Fully automated, floor-standing, discrete random-access clinical chemistry analyzer
- Constant photometric throughput of up to 400 tests per hour
- Optional ISE configuration for sodium, potassium and chloride; confirm the included configuration before ordering
- 90 total sample positions, including 60 barcode-readable positions
- 80 on-board reagent positions
- Refrigerated reagent compartment maintained at 2–10°C
- Samples and reagents can be added or removed while the instrument is running
- Reusable cuvettes with an automated washing station
- Two independent mixing stirrers
- Liquid-level and clot or aggregate detection
- Vertical and horizontal probe collision protection
- Automatic sample pre-dilution and post-dilution capabilities
- Reversed-grating photometric system with 12 wavelengths
- Built-in barcode scanning
- Bidirectional LIS interface
Designed for Automated Laboratory Workflows
Continuous Access
Samples and reagents can be added or removed during operation, helping laboratories respond to changing workload priorities.
Automated Sample Handling
Barcode reading, liquid-level detection, clot or aggregate detection and probe collision protection support routine processing.
Chemistry and Toxicology
The platform supports routine clinical chemistry and compatible drugs-of-abuse immunoassays when the appropriate applications are installed and verified.
Compare the Mindray BA-800M and BS-480
Both analyzers support automated chemistry and compatible toxicology workflows. The appropriate system depends on testing volume, sample capacity, reagent capacity and laboratory workflow.
| Feature | Mindray BA-800M | Mindray BS-480 |
|---|---|---|
| Jant Catalog Number | MTBA800M | MTBS480 |
| Photometric Throughput | Up to 800 tests per hour | Up to 400 tests per hour |
| ISE Capability | Overall throughput up to 1,200 tests per hour with ISE; confirm the included configuration | Optional sodium, potassium and chloride configuration; Jant currently lists up to 240 ISE tests per hour |
| Sample Capacity | 440 total positions: 140 on the analyzer tray plus 300 in the Sample Delivery Management module | 90 total positions, including 60 barcode-readable positions |
| Reagent Positions | 120 positions | 80 positions |
| Sample Management | Built-in Sample Delivery Management module with dedicated STAT and rerun tracks | Random-access workflow with samples and reagents accessible during operation |
| Workflow Fit | Expanded capacity for higher-volume chemistry and toxicology workflows | A more compact option for moderate-volume chemistry and toxicology workflows |
Throughput and capacity are manufacturer specifications and may vary by configuration and workflow. Confirm ISE inclusion, assay applications, reagents, controls, installation requirements and current availability with Jant Pharmacal before selecting a system.
Technical Specifications
| Specification | Mindray BS-480 |
|---|---|
| Jant Catalog Number | MTBS480 |
| System Type | Fully automated, floor-standing, discrete random-access clinical chemistry analyzer |
| Photometric Throughput | Constant throughput of up to 400 tests per hour |
| ISE | Optional configuration for sodium, potassium and chloride; Jant currently lists up to 240 ISE tests per hour |
| Sample Positions | 90 total positions; 60 positions are barcode readable |
| Reagent Positions | 80 positions |
| Sample Volume | 1.5–45 µL, adjustable in 0.1 µL increments |
| Reagent Volume | R1: 45–350 µL; R2–R4: 10–350 µL |
| Reaction Volume | 120–360 µL |
| Reaction Cuvettes | Reusable cuvettes with an automated washing station |
| Reagent Refrigeration | 2–10°C refrigerated reagent compartment |
| Photometric System | Reversed-grating system with 12 wavelengths |
| Sample Handling | Built-in barcode scanner, pre-dilution and post-dilution, liquid-level detection, clot or aggregate detection and probe collision protection |
| Data Connectivity | Bidirectional LIS interface; confirm hardware, middleware and validation requirements for the planned configuration |
| Approximate Dimensions | 45 W × 28 D × 45 H inches |
| Approximate Weight | 661 lb |
| Regulatory Status | Confirm the analyzer configuration, regulatory status and assay-specific labeling with Jant Pharmacal before purchase or use. |
Specifications may vary by market and configuration. Confirm the optional ISE module, electrical service, purified-water supply, drainage, clearances, environmental requirements, computer and LIS components with Jant before ordering.
Chemistry and Toxicology Reagents
The final BS-480 workflow depends on the laboratory’s chemistry and toxicology menu, analyzer configuration, application parameters, calibrators, controls and quality-control procedures. Confirm compatibility and current availability before ordering any system component.
BS-480 Reagent Options
- General chemistry reagent applications
- Compatible drugs-of-abuse immunoassays
- Barcoded reagent options listed by Jant
- Pour-over open-channel formats listed by Jant
Workflow Materials
- Application-specific calibrators and quality controls
- Analyzer wash and maintenance materials
- Compatible sample containers and barcodes
- Application parameters and laboratory verification records
Explore Jant Chemistry and Toxicology Resources
Review the dedicated BS-480 reagent listing and related chemistry, toxicology and quality-control resources from Jant Pharmacal.
View BS-480 Reagents View Chemistry Open-Channel Reagents Explore Toxicology Explore Quality ControlsThese category links support product discovery and do not establish compatibility with every BS-480 configuration. Confirm the analyzer application, reagent lot, calibrators, controls, instrument parameters and regulatory labeling before use.
Important Product Information
- The current Jant listing does not state whether catalog number MTBS480 includes the optional ISE module.
- Only use reagents, calibrators, controls, consumables and application parameters validated for the laboratory’s BS-480 configuration.
- Regulatory status, specimen requirements, calibration, quality-control frequency and CLIA complexity are assay specific.
- Drugs-of-abuse test availability and intended-use restrictions vary by assay. Some tests may be restricted to forensic or criminal-justice use.
- Confirm analyzer availability, included hardware and software, installation, water and drainage requirements, training, warranty and service coverage before ordering.
- Ask Jant about current analyzer-placement options, eligibility requirements and program terms.
Documentation and Resources
Review the manufacturer brochure, product information and U.S. toxicology application resources. Contact Jant Pharmacal for the current documentation applicable to the analyzer configuration and assays being ordered.
Mindray BS-480 Product Brochure Mindray BS-480 Product Information Watch the Mindray BS-480 Product VideoFrequently Asked Questions
The BS-480 is a floor-standing, fully automated random-access clinical chemistry analyzer designed for medium- to high-volume laboratory workflows.
The analyzer provides constant photometric throughput of up to 400 tests per hour. ISE capability is configuration dependent and should be confirmed before ordering.
The U.S. product information lists 90 sample positions, including 60 barcode-readable positions, and 80 reagent positions.
Compatible drugs-of-abuse immunoassays are marketed for the U.S. BS-480 platform. Confirm the current assay menu, specimen type, intended use, calibrators, controls and any forensic-use restrictions with Jant before implementation.
Jant lists BS-480 chemistry and toxicology reagents in barcoded and pour-over open-channel formats. Each application requires the correct parameters, calibration, quality control and laboratory verification.
The BS-480 is offered in configurations with and without ISE. The current Jant listing does not specify which configuration is represented by catalog MTBS480, so this must be confirmed when requesting a quote.
Yes. The U.S. product information states that samples and reagents can be added or removed during operation.
The product information lists a reagent-compartment temperature of 2–10°C. Storage and onboard-stability requirements remain reagent specific.
The analyzer supports bidirectional LIS communication. Confirm the required computer, interface hardware, middleware, mapping and validation process for the laboratory’s environment.
Confirm electrical service, purified-water supply, drainage, floor clearances, operating environment, computer and LIS requirements, delivery access and service access with Jant before installation.
The current Jant listing invites customers to ask about an analyzer-placement program. Contact Jant for current eligibility requirements, reagent commitments, availability and program terms.
Ordering Information
To confirm availability, discuss analyzer placement or request a quote, call Jant Pharmacal at 800.676.5565
| Catalog Number | Description | Unit of Measurement |
|---|---|---|
| MTBS480 | Mindray BS-480 Chemistry Analyzer | Each |
Confirm the ISE configuration, assay menu, reagents, calibrators, controls, consumables, computer and LIS components, installation, training, warranty, service coverage and analyzer-placement terms when requesting a quote.
