Standard Multiplex RT-PCR Panels
Accutest® Standard Antibiotic Resistance RT-PCR Panels
Two predefined multiplex panels for molecular research involving
antimicrobial resistance genetic markers.
ABR Panel 1 includes 18 resistance markers and
ABR Panel 2 includes 20 resistance markers.
RNase P (RPP30) is included as the internal control.
ABR Panel 1
18 antimicrobial-resistance markers plus RNase P (RPP30).
ABR Panel 2
20 antimicrobial-resistance markers plus RNase P (RPP30).

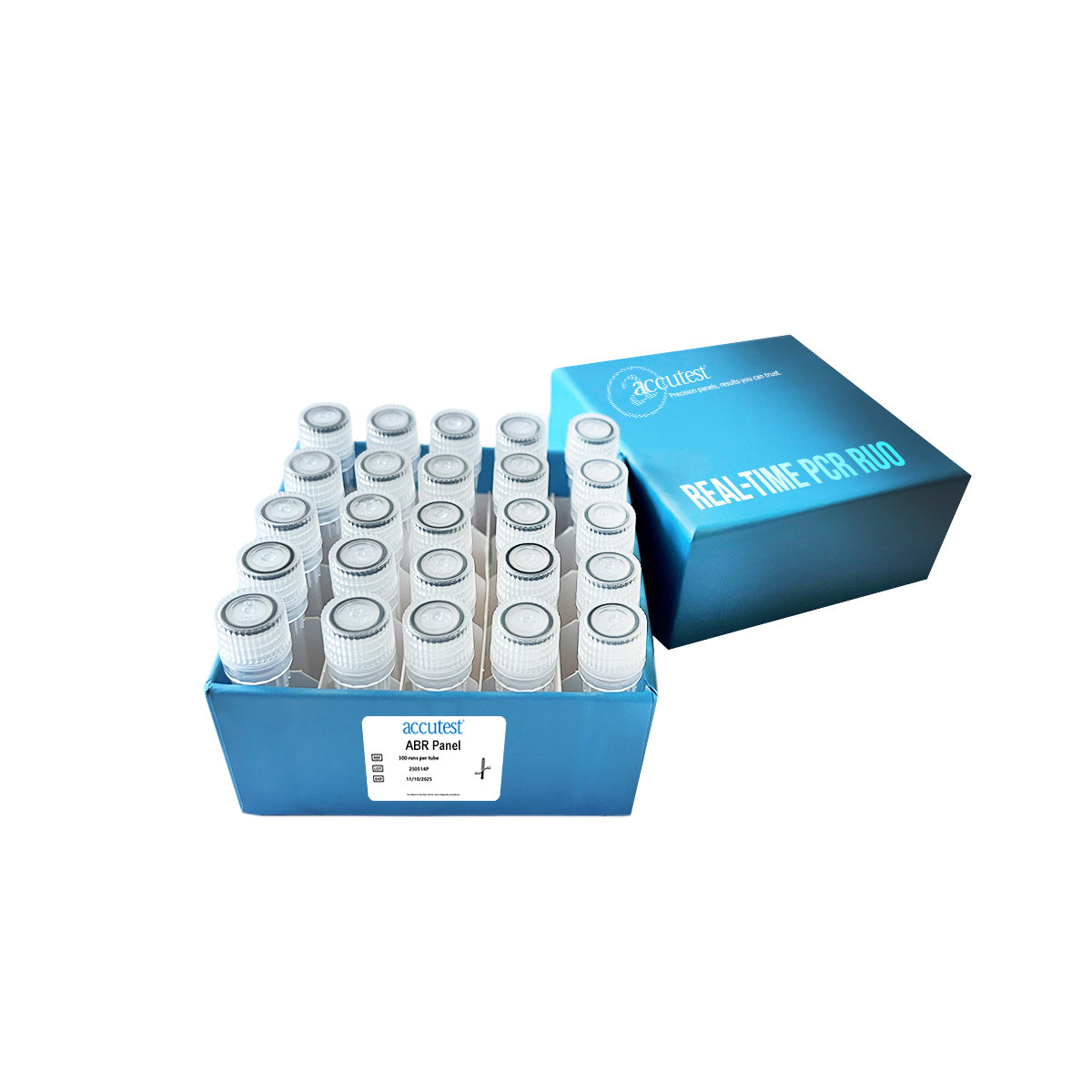

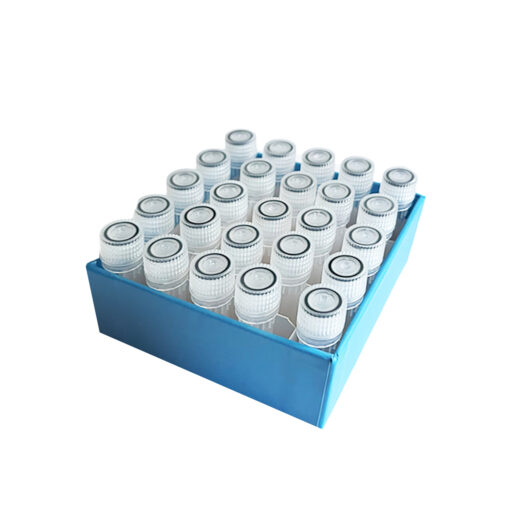

Plate & Tube Formats
Clear or white pre-spotted plates plus 100-reaction tube formats.
Important research limitation:
Detection of a targeted resistance gene does not by itself establish gene expression,
phenotypic susceptibility or clinical treatment response.
Panel Comparison
Choose ABR Panel 1 or ABR Panel 2
Both panels use predefined multiplex target menus and include RNase P (RPP30) as the internal control.
18 Resistance Markers
The original Standard Antibiotic Resistance menu covering beta-lactamase, carbapenemase, erm, mecA and additional resistance markers.
- 18 resistance markers
- RNase P (RPP30) internal control
- 96- and 384-well plate formats
- 100-reaction tube format
- MasterMix included
20 Resistance Markers
An additional predefined ABR menu that includes dfrA1 and dfrA5 along with multiple beta-lactamase, carbapenemase and other resistance markers.
- 20 resistance markers
- RNase P (RPP30) internal control
- 96- and 384-well plate formats
- 100-reaction tube format
- MasterMix included
ABR Panel 1
18 Resistance Markers
RNase P (RPP30) is included separately as the internal control.
β-Lactamase & Carbapenemase
- blaCTX-M-1/2/8/9 group
- IMP-1
- IMP-2
- KPC-3
- NDM
- OXA-23
- OXA-48
- OXA-58
- VIM
erm & mecA
- ermA
- ermB
- ermC
- mecA
Additional Resistance Markers
- qnrA/B
- sul1
- sul2
- tetM
- vanA/B
ABR Panel 2
20 Resistance Markers
RNase P (RPP30) is included separately as the internal control.
β-Lactamase & Carbapenemase
- CTX-M-1/2/9/8 (bla_CTX-M-3, blaCTX-M-9, blaCTX-M-35, blaCTX-M-63)
- IMP-1
- IMP-2
- KPC-3
- NDM
- OXA-23
- OXA-48
- OXA-58
- VIM
erm & mecA
- ErmA
- ErmB
- ErmC
- mecA
Additional Resistance Markers
- dfrA1
- dfrA5
- qnrAB
- Sul1
- sul2
- tetM
- Van AB
Internal Control:
RNase P (RPP30) is included with both ABR Panel 1 and ABR Panel 2.
Technical Information
Panel Specifications
| Specification | Standard Configuration |
|---|---|
| ABR Panel 1 | 18 resistance markers |
| ABR Panel 2 | 20 resistance markers |
| Internal Control | RNase P (RPP30) |
| MasterMix | Included |
| Plate Formats | 96-well and 384-well |
| Plate Options | Clear or white |
| Tube Format | 100 reactions |
| 96-Well Reaction Volume | 20 µL |
| 384-Well Reaction Volume | 10 µL |
| Cycling | Standard and fast cycling protocols supported |
| Shipping | Dry ice |
| Storage | –15°C to –25°C |
| Use | Research Use Only |
Ordering Information
ABR Panel 1 & ABR Panel 2 Configurations
| Catalog Number | Panel | Format |
|---|---|---|
| ABR Panel 1 | ||
| ABR-01-C-384 | ABR Panel 1 | Pre-spotted 384-well plate, clear |
| ABR-01-W-384 | ABR Panel 1 | Pre-spotted 384-well plate, white |
| ABR-01-C-96 | ABR Panel 1 | Pre-spotted 96-well plate, clear |
| ABR-01-W-96 | ABR Panel 1 | Pre-spotted 96-well plate, white |
| ABR-01-T-384-100R | ABR Panel 1 | Tube format, 100 reactions |
| ABR Panel 2 | ||
| ABR-02-C-384 | ABR Panel 2 | Pre-spotted 384-well plate, clear |
| ABR-02-W-384 | ABR Panel 2 | Pre-spotted 384-well plate, white |
| ABR-02-C-96 | ABR Panel 2 | Pre-spotted 96-well plate, clear |
| ABR-02-W-96 | ABR Panel 2 | Pre-spotted 96-well plate, white |
| ABR-02-T-384-100R | ABR Panel 2 | Tube format, 100 reactions |
Before ordering:
Confirm the selected ABR panel, plate or tube format, instrument model,
fluorescence channels and any additional control requirements with Jant Pharmacal.
Standard or Custom Antibiotic Resistance Panel?
Choose one of the predefined Standard ABR menus or create a custom configuration
around your research requirements.
Standard ABR Panels
Choose ABR Panel 1 or ABR Panel 2 when one of the predefined resistance-marker
menus matches your research workflow.
- Predefined resistance-marker menus
- 96- and 384-well formats
- Tube formats available
- MasterMix included
Custom Pre-Plated ABR Panels
For research workflows that require a different combination of available
antibiotic-resistance assays.
Frequently Asked Questions
Standard Antibiotic Resistance RT-PCR Panel FAQ
What is the difference between ABR Panel 1 and ABR Panel 2?
ABR Panel 1 includes 18 antimicrobial-resistance markers, while ABR Panel 2 includes 20 markers. RNase P (RPP30) is included as the internal control in both panels.
Does detection of a resistance gene prove phenotypic resistance?
No. Detection of a targeted resistance gene does not by itself establish gene expression, phenotypic susceptibility or clinical treatment response.
Is MasterMix included?
Yes. MasterMix is included with the panel mixes.
Which formats are available?
Both ABR panels are available in clear and white 96-well and 384-well pre-spotted plate formats, as well as 100-reaction tube configurations.
What reaction volumes are used?
The standard configuration uses a 20 µL reaction volume for 96-well formats and a 10 µL reaction volume for 384-well formats.
How are the panels shipped and stored?
Panels are shipped on dry ice and should be stored at –15°C to –25°C.
Are these panels intended for diagnostic use?
No. These products are offered for Research Use Only and are not for use in diagnostic procedures.
Request Information
Need Help Choosing ABR Panel 1 or ABR Panel 2?
Complete the form below and Jant Pharmacal can help review the appropriate panel, format and instrument requirements for your research workflow.
You can also call 800.676.5565.
