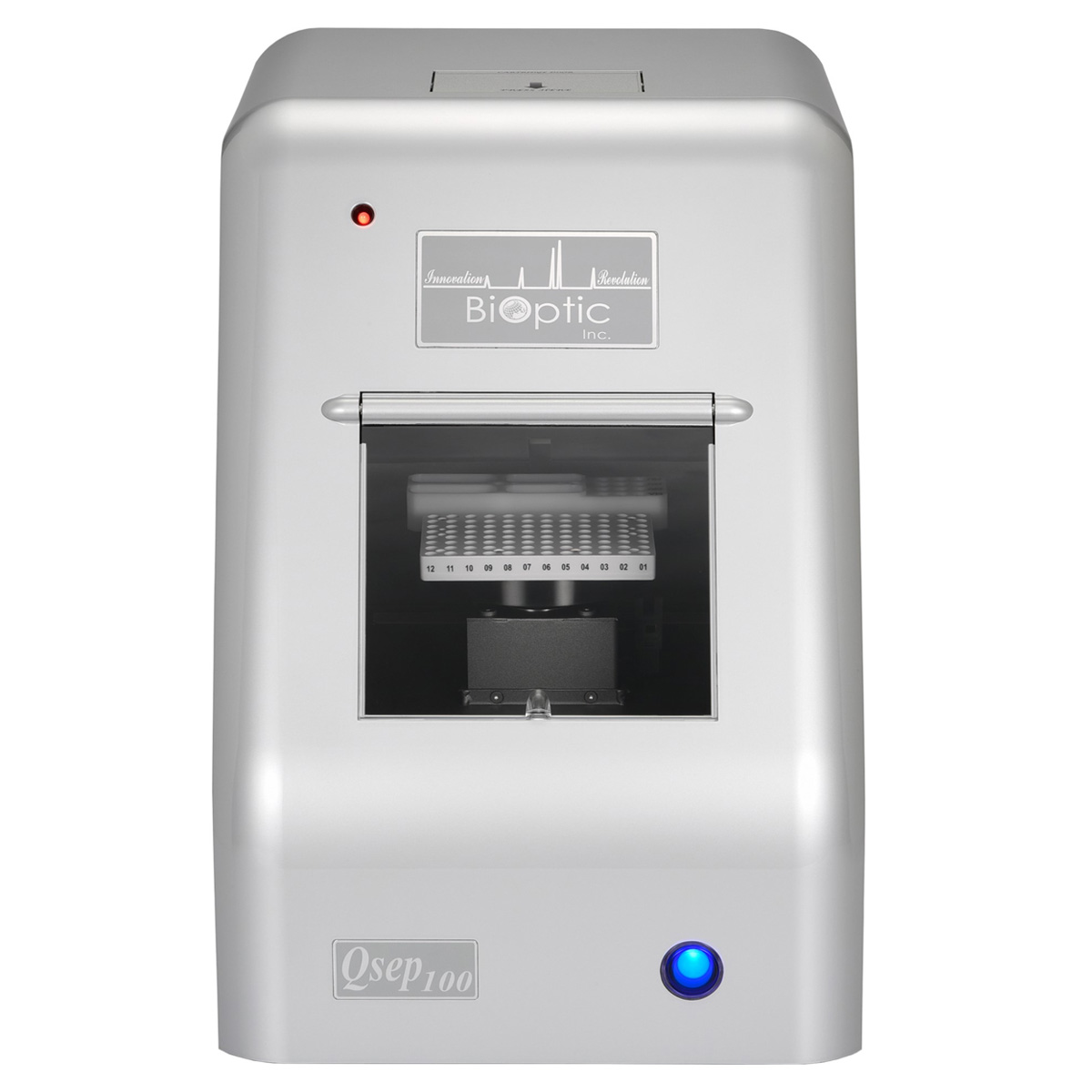

Qsep100 Capillary Electrophoresis Bio-Fragment Analyzer

Qsep100 is a standard-sized automated Bio-Fragment Analyzer and is the classic model of Qsep series. With its single-channel design, it can run 1~96 samples. The high sample flexibility makes it suitable for small and medium-sized laboratories. Qsep100 supports various types of applications, including DNA, RNA and protein fragment analyses and high-voltage fast analysis.

The system provides applications such as RNA quality control with RNA Quality Number (RQN) provided, auto-distribution of NGS QC and quality control of gDNA with DNA Quality Number (DQN) provided. Qsep100 is a top choice for NGS QC.

Qsep series can not only replace the complicated and time-consuming gel preparation and analysis procedure, but increase the accuracy of analysis, elevate efficiency and reproducibility, and reduce the human error and costs.

– The standard-sized capillary electrophoresis Bio-Fragment Analyzer for DNA, RNA and protein.
– Qsep100 is ideal for small and medium-sized laboratories for its 1~96 sample capacity and high sample flexibility.
– 10+ types of cartridges can be easily exchanged between various applications.
– The provided quantitative method delivers fragment size and concentration information in one run.

Technical Specification

Detection: Fluorescence

Light Source: LED

Separation Voltage: 1~15 kV

Connection: USB

Power Source: AC 100~240 V

Minimum Power: 30 W

System Weight: 15 kg

Dimension: 38*30*40 cm

System Type: Standard System

Automated Sampling: 1~96 samples

Disposable Gel-Cartridge
(100~200 sample capacity without gel preparation):

Single Channel Cartridge:

• • • • DNA: S1, S2, S3, N1, N3
      • RNA: R1, NR1
      • Protein: P2

Rapid Analysis: 1~7 mins/ sample (below 1 kb)

Resolution: 1~4 bp (below 500 bp)

Sensitivity: 5 pg/ µL or *1pg/ µL (If diluted in ddH₂O)

Minimum Sample Volume:

1~2 µL (Micro Vial, C104250)
10 µL (0.1 mL Tube & 16+3 well sample Tube)
20 µL (0.2 mL Tube)

Sample Consumption: ≤ 1 pL

Software: Q-Analyzer:

Relative qualitative and quantitative analysis Electrophoresis
Gel view image
Customer-oriented report
