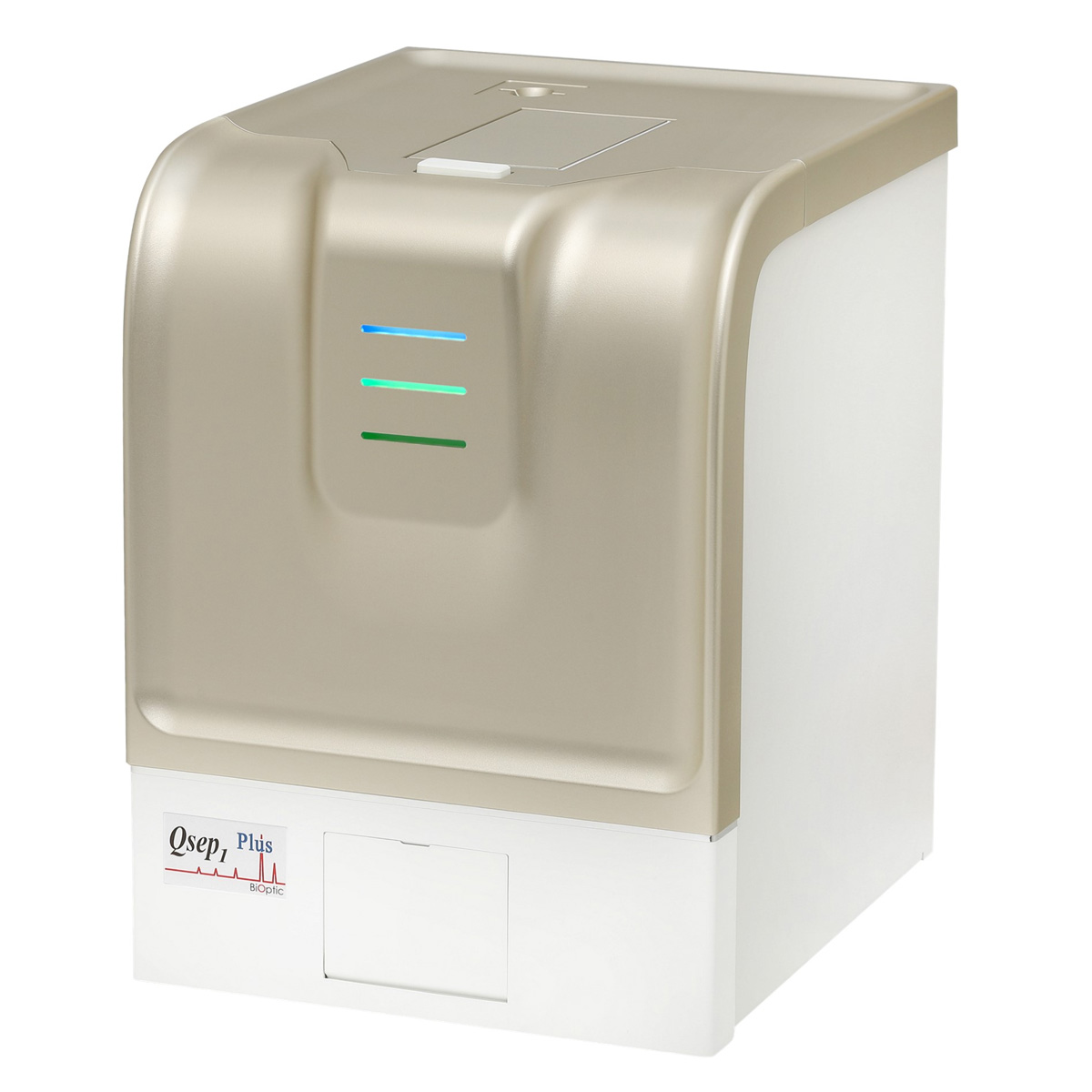

Qsep1-Plus Capillary Electrophoresis Bio-Fragment Analyzer

Qsep1-Plus has the highest specification product among all portable automated Bio-Fragment Analyzers. Advantages of capillary electrophoresis are high resolution (1~4bp if less than 500bp), high sensitivity (5pg/μl) and significantly faster preparation and analysis time. Besides analyzing fragment sizes and concentrations, it is also suitable for quality control of next-generation sequencing (NGS).

Qsep1-Plus is equipped with completed hardware and software and has fully functional remote access via cable/Wi-Fi. The system provides various kinds of applications such as RNA quality control with RNA Quality Number (RQN) provided, auto-distribution of NGS QC and quality control of gDNA with DNA Quality Number (DQN) provided. Qsep1-Plus is a top choice for modern small or medium-sized laboratory.

Qsep series can not only replace the complicated and time-consuming gel preparation and analysis procedure, but increase the accuracy of analysis, elevate efficiency and reproducibility, and reduce the human error and costs.

– The smallest/portable-sized capillary electrophoresis Bio-Fragment Analyzer for DNA, RNA and protein.
– Qsep1-Plus is ideal for small laboratories with low throughput (1~15 samples) needs.
– The system supports Wi-Fi and cable connections, breaking the barriers of space.
– 10+ types of cartridges can be easily exchanged between various applications.
– The provided quantitative method delivers fragment size and concentration information in one run.

* If only profiling is needed, the sample capacity can be up to 16 samples.

Technical Specification

Detection: Fluorescence

Light Source: LED

Separation Voltage: 1~8 kV

Connection: Wifi/ Ethernet Cable

Power Source: AC 100~240 V

Minimum Power: 30 W

System Weight: 5.5 kg

Dimension: 24*21*30 cm

System Type: Portable System

Automated Sampling: 1~16 samples

Disposable Gel-Cartridge
(100~200 sample capacity without gel preparation):

Single Channel Cartridge:

• • • • DNA: S1, S2, S3, N1, N3
      • RNA: R1, NR1
      • Protein: P2

Rapid Analysis: 2~7 mins/ sample (below 1 kb)

Resolution: 1~4 bp (below 500 bp)

Sensitivity: 5 pg/ µL or *1pg/ µL (If diluted in ddH₂O)

Minimum Sample Volume:

1~2 µL (Micro Vial, C104250)
10 µL (0.1 mL Tube & 16+3 well sample Tube)
20 µL (0.2 mL Tube)

Sample Consumption: ≤ 1 pL

Software: Q-Analyzer:

Relative qualitative and quantitative analysis Electrophoresis
Gel view image
Customer-oriented report
