Product Overview

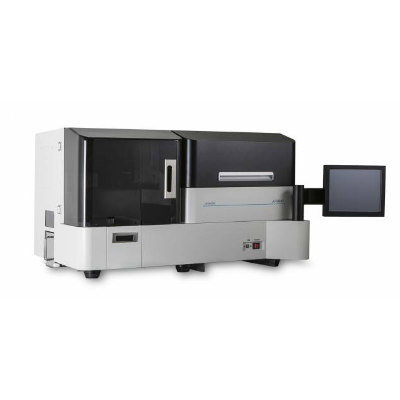

The OPTIGEN® AP3600™ Automated In Vitro Allergy Diagnostic System is a fully automated benchtop platform designed for multiplex allergen-specific IgE testing in human serum. The system automates the OPTIGEN assay from sample tube through result and allows a laboratory to evaluate multiple allergens from a single patient sample.
Each OPTIGEN pette can contain up to 36 allergens tested simultaneously. The AP3600 processes as many as 50 pettes per run and up to 100 panels per day, providing as many as 3,600 allergen-specific IgE results per day when using 36-allergen panels.
The platform is designed to reduce hands-on steps through automated reagent-volume calculations, pre-run checks, internal barcode identification and two-way LIS connectivity. It works with preconfigured OPTIGEN Environmental 36 and US Food 30 panels available through Jant Pharmacal.
50 Panels per Run
Processes up to 50 OPTIGEN pettes in a single automated run.
Up to 3,600 Results per Day
Supports up to 100 panels daily when using 36-allergen panels.
0.7 mL Serum Sample
Tests as many as 36 allergens using 0.7 mL of patient serum.
Automated Allergy-Testing Workflow
1. Prepare
Prepare the patient serum samples and select the appropriate preconfigured OPTIGEN panel.
2. Load
Load the samples, required OPTIGEN pettes and consumables. The instrument verifies loaded components before the run.
3. Run and Review
Start the automated run and review the completed allergen-specific IgE results. A full run is completed in approximately 5.5 hours.
Workflow requirements must follow the current OPTIGEN instructions for use and the laboratory’s established procedures.
Key Features
- Fully automates the OPTIGEN allergen-specific IgE assay from sample tube through result
- Processes up to 50 panels per run, with as many as 36 allergens per panel
- Processes up to 100 panels or 3,600 allergen results per day when using 36-allergen panels
- Requires 0.7 mL of patient serum to test up to 36 allergens
- Automatically calculates reagent-volume requirements
- Performs an automatic pre-run check of loaded components
- No calibration curve or daily calibration required
- Intuitive touchscreen user interface
- Internal barcode system supports sample and result identification
- Two-way LIS connectivity using HL7 messaging protocol
- Preconfigured environmental and food allergy panels
- Benchtop configuration for the clinical laboratory
Product Specifications
| Jant Catalog Number | HCDAP3600 |
|---|---|
| Product | OPTIGEN® AP3600™ Automated In Vitro Allergy Diagnostic System |
| Instrument Type | Fully automated benchtop allergy diagnostic instrument |
| Assay | OPTIGEN Allergen-Specific IgE Assay |
| Specimen | Human serum |
| Sample Volume | 0.7 mL for up to 36 allergens |
| Maximum Capacity | 50 pettes per run |
| Daily Throughput | Up to 100 panels or 3,600 allergen results per day using 36-allergen panels |
| Run Time | Approximately 5.5 hours through result |
| Available AP3600 Panels | OPTIGEN US Environmental 36 and OPTIGEN US Food 30 |
| Connectivity | Two-way LIS connectivity; HL7 messaging protocol |
| Dimensions | 45 × 25 × 30 in. (W × H × D); 1,140 × 630 × 760 mm |
| Weight | 375 lb (170 kg) |
| Input Voltage | 100–240 VAC ±10% |
| Input Frequency | 50/60 Hz ±4% |
| Power Consumption | 500 VA |
| Unit of Measurement | Each |
OPTIGEN Allergy Panels for the AP3600
OPTIGEN US Environmental 36
Provides a preconfigured panel of environmental allergens across the following categories:
- Trees and weeds
- Grasses and molds
- Cat and dog dander
- Dust mites
- Cockroach mix
OPTIGEN US Food 30
Provides a preconfigured panel of commonly tested food allergens across the following categories:
- Fish and seafood
- Grains, fruits and vegetables
- Legumes, nuts and seeds
- Dairy, meat and egg
- Baker’s yeast
View the complete allergen menu, reagent information and ordering resources on the OPTIGEN AP3600 and CLA-1 Allergen-Specific Assays page.
Allergy Testing Reagents and Laboratory Support
Connect the AP3600 instrument with the compatible OPTIGEN panels and broader allergy-testing resources available through Jant Pharmacal. Laboratories evaluating the platform can also request a complimentary ROI proposal to help assess financial feasibility.
View OPTIGEN Assays and Allergens Browse Allergy Diagnostics Request an ROI ProposalImportant Product Information
- The AP3600 is designed for use with the OPTIGEN Allergen-Specific IgE Assay and compatible AP3600 pettes and consumables.
- The manufacturer identifies OPTIGEN testing on the AP3600 as an in vitro diagnostic application using human serum.
- All testing must be performed by qualified laboratory personnel according to the current instructions for use, laboratory procedures and applicable regulatory requirements.
- Confirm the exact instrument configuration, installation requirements, included accessories, software, LIS requirements, training, warranty and service coverage when requesting a quote.
- Panel availability, specifications and ordering information may change. Verify the current manufacturer documentation and Jant quotation before ordering.
Documentation and Resources
Review the AP3600 system brochure and related product resources. Contact Jant Pharmacal for the current instructions for use, availability and documentation applicable to the system and assays being ordered.
OPTIGEN AP3600 System Brochure OPTIGEN Assays and Allergen Menu Manufacturer AP3600 Product PageFrequently Asked Questions
The OPTIGEN AP3600 is a fully automated benchtop instrument designed to perform multiplex allergen-specific IgE testing in human serum using the OPTIGEN assay.
The AP3600 works with the OPTIGEN Allergen-Specific IgE Assay to measure allergen-specific IgE in human serum. The results are reported across seven classes, from Class 0, not detectable, through Class 6, very high levels.
The AP3600 can process up to 50 pettes per run. With two runs, the system can process up to 100 panels per day.
When using 36-allergen panels, the AP3600 can produce up to 1,800 allergen results per run and up to 3,600 allergen results per day.
The AP3600 requires 0.7 mL of human serum to test for up to 36 allergens, equivalent to approximately 20 µL per allergen.
The current AP3600 menu includes the OPTIGEN US Environmental 36 panel and the OPTIGEN US Food 30 panel. Review the OPTIGEN assay page for the complete allergen menu.
The manufacturer describes approximately 5.5 hours of automated run time through result after instrument, consumable and sample setup.
The AP3600 performs an automatic pre-run check and does not require a calibration curve or daily calibration. Laboratories must still perform all quality-control and maintenance procedures required by the current manufacturer instructions and their own procedures.
Yes. The AP3600 supports two-way LIS connectivity and uses the HL7 messaging protocol. Confirm interface specifications and implementation requirements for the laboratory’s LIS before installation.
Yes. Jant offers the compatible OPTIGEN AP3600 panels and consumables and can prepare a complimentary ROI proposal to help a laboratory evaluate the financial feasibility of adding allergy testing.
Ordering Information
To request availability, product configuration or a quote, call Jant Pharmacal at 800.676.5565
| Catalog Number | Description | Unit of Measurement |
|---|---|---|
| HCDAP3600 | OPTIGEN® AP3600™ Automated In Vitro Allergy Diagnostic System | Each |
Compatible OPTIGEN panels, control reagent and consumables are ordered separately. Please confirm the complete system configuration, included components, installation requirements, training, warranty and service coverage when requesting a quote.
