RESPONSE CARDIOVASCULAR Cardiac Markers to Optimize Rapid Clinical Diagnosis. Healthcare professionals require a diagnostic testing solution driven by rigorous quality control and the highest standards to accelerate patient diagnosis and throughput. The RAMP®200 Platform provides healthcare professionals with a choice of cardiac markers to optimize rapid clinical diagnosis.

Request Info Request Quote
  • This field is for validation purposes and should be left unchanged.
  • This field is hidden when viewing the form
  • This field is hidden when viewing the form
  • This field is hidden when viewing the form
    Leave the box checked if you wish to receive occasional special offer emails, or uncheck it to decline. Don't worry, we won't spam you.
  • This field is hidden when viewing the form
  • This field is hidden when viewing the form
  • This field is hidden when viewing the form
    Leave the box checked if you wish to receive occasional special offer emails, or uncheck it to decline. Don't worry, we won't spam you.

Product Overview

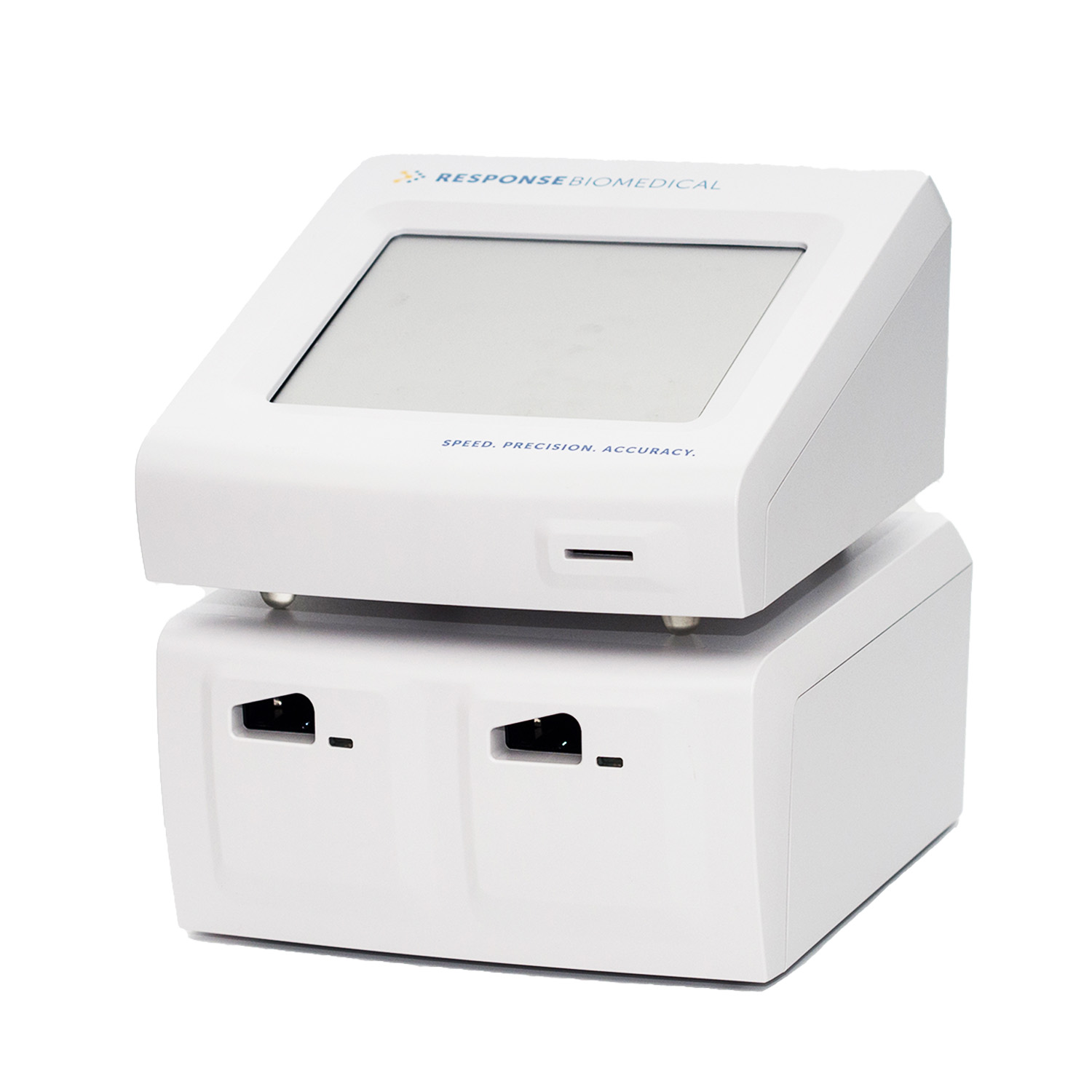

The RAMP® 200 Cardiac Diagnostic System from Response Biomedical is a compact, automated platform for quantitative cardiovascular testing. Its modular design combines one control module with one to three dual-port test modules, allowing laboratories to begin with two testing positions and expand to as many as six.

RAMP cardiovascular assays use single-use test cartridges and lot-specific information stored on a lot card. After the prepared cartridge is inserted, the instrument identifies the assay, checks the cartridge information and calculates an objective quantitative result. Average time to result is approximately 15 minutes, depending on the assay.

Important: For U.S. customers, the RAMP Platform must be operated in a laboratory setting when used with the RAMP portfolio of tests. Testing requirements, specimen type, intended use and regulatory status are assay-specific; always review the applicable Instructions for Use.

Approximately 15 Minutes

The platform provides rapid quantitative results, with timing dependent on the selected RAMP assay.

Up to Six Simultaneous Tests

Each dual-port test module runs two cartridges, and the control module supports up to three test modules.

Built-In Process Controls

Lot-card recognition, cartridge checks, self-diagnostics and internal quality-control functions support standardized operation.

Key Features

  • Modular configuration with one control module and one to three dual-port test modules
  • Run two, four or six tests simultaneously, depending on the installed configuration
  • Average time to result of approximately 15 minutes for the cardiovascular menu
  • Published throughput of approximately 18–36 tests per hour with three test modules, depending on assay timing and workflow
  • Run the same assay or different compatible assays for the same or different patients at the same time
  • Bright touchscreen interface with English, Spanish, Portuguese, French, Italian, German and Chinese language options
  • Lot-specific assay information and calibration entered through preprogrammed lot cards
  • Automatic checks for used or expired cartridges and missing lot information
  • Self-diagnostic and internal electronic quality-control functions
  • Programmable external liquid quality-control ranges and lockout functions
  • Multiple access levels, including optional operator lockout and expiration settings
  • LAN and USB connectivity with optional barcode scanner and printer accessories

A Simple Three-Step Testing Process

1

Prepare the Sample

Prepare the patient specimen and test cartridge according to the assay-specific Instructions for Use.

2

Insert the Cartridge

Insert the prepared cartridge into an available test-module port. The system verifies the assay and lot information.

3

Review the Result

The RAMP 200 reads the fluorescent signal, applies the assay-specific calculation and displays the quantitative result.

Product Specifications

System RAMP 200
Manufacturer Response Biomedical Corporation
System Design One control module with one to three dual-port test modules
Simultaneous Testing Capacity Two, four or six tests, depending on installed test modules
Average Cardiovascular Time to Result Approximately 15 minutes; assay dependent
Published Throughput Approximately 18–36 tests per hour with three test modules
Control Module Dimensions 7.7 × 7.0 × 4.1 in
Control Module Weight 2.2 lb
Test Module Dimensions 7.7 × 7.3 × 3.8 in
Test Module Weight 3.3 lb
Power Requirements Universal power supply; 12 VDC output
External Connections LAN, three USB ports and three custom DIN connectors for test modules
Result Storage Up to 300 patient results, 300 internal QC results and 300 liquid QC results

Specifications are based on the current Jant product page and the 2024 cardiovascular brochure. Confirm the supplied configuration, accessories, software and connectivity requirements before ordering.

RAMP Cardiovascular Test Menu

The 2024 cardiovascular brochure lists the following RAMP assays. Test kits, controls and other required materials are ordered separately unless specifically included in a quotation.

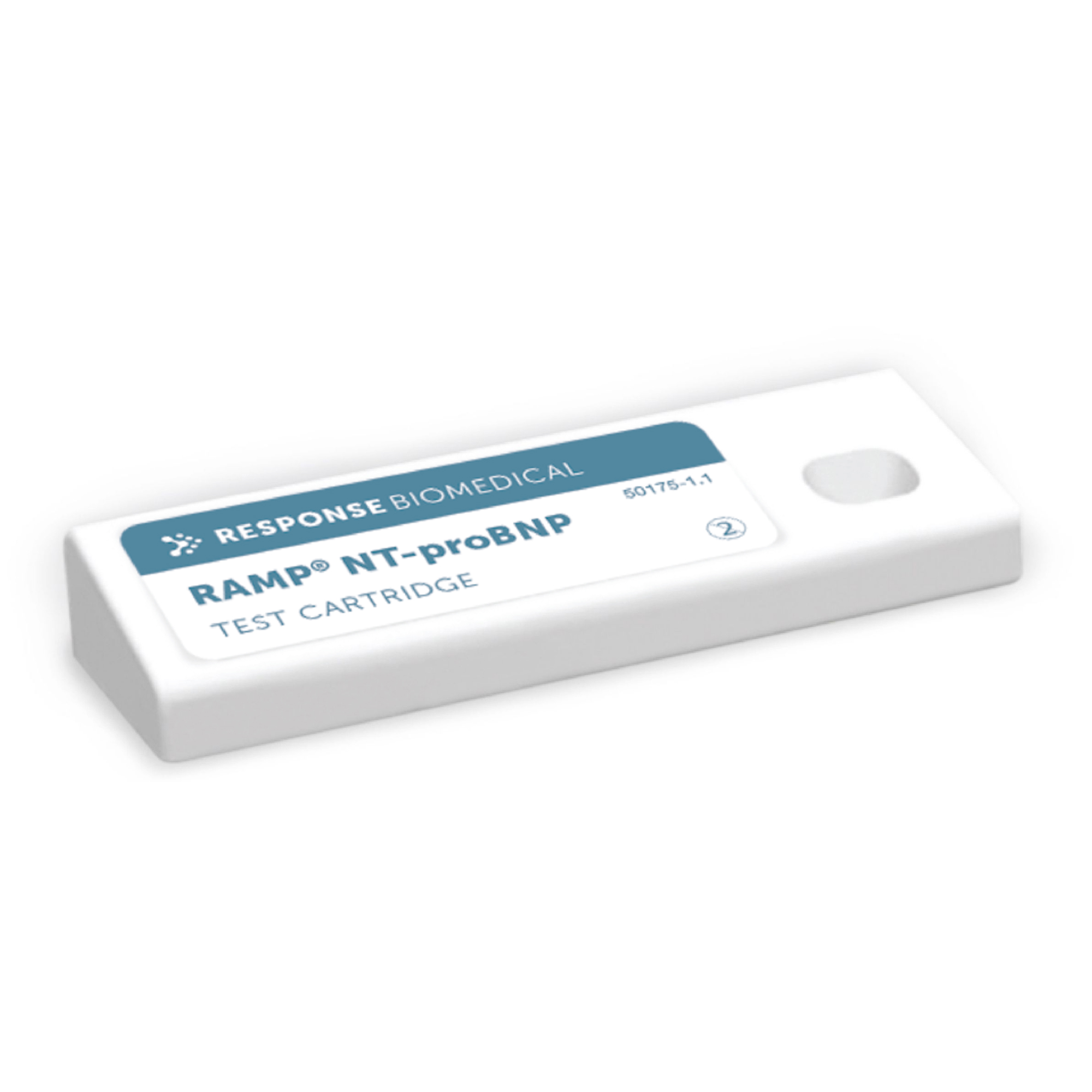

NT-proBNP

Quantitative EDTA whole-blood assay used as an aid in the diagnosis and assessment of severity in individuals suspected of having heart failure and as an aid in risk stratification.

View RAMP NT-proBNP Test

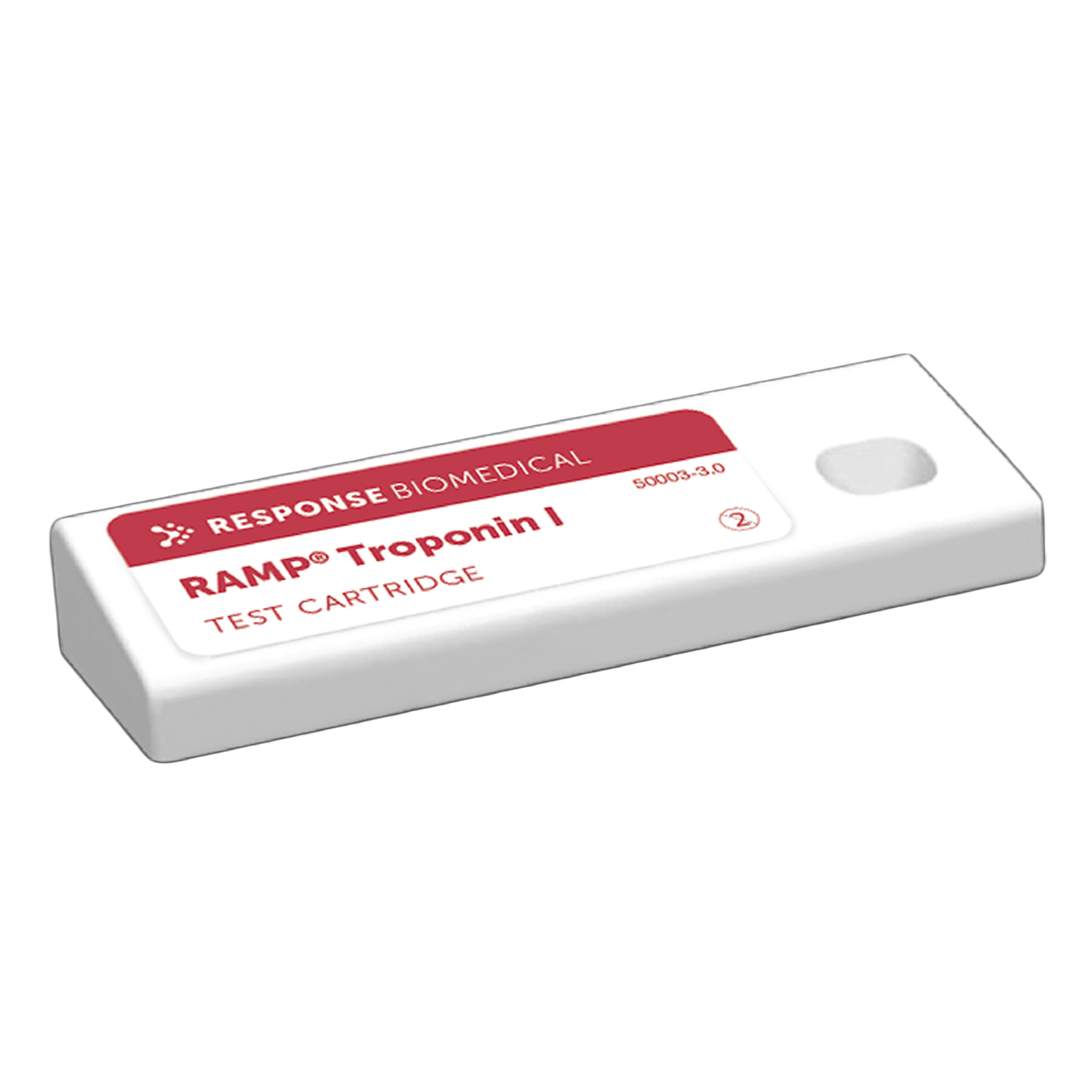

Troponin I

Quantitative EDTA whole-blood cardiac troponin I assay used as an aid in the diagnosis of acute myocardial infarction.

View RAMP Troponin I Test

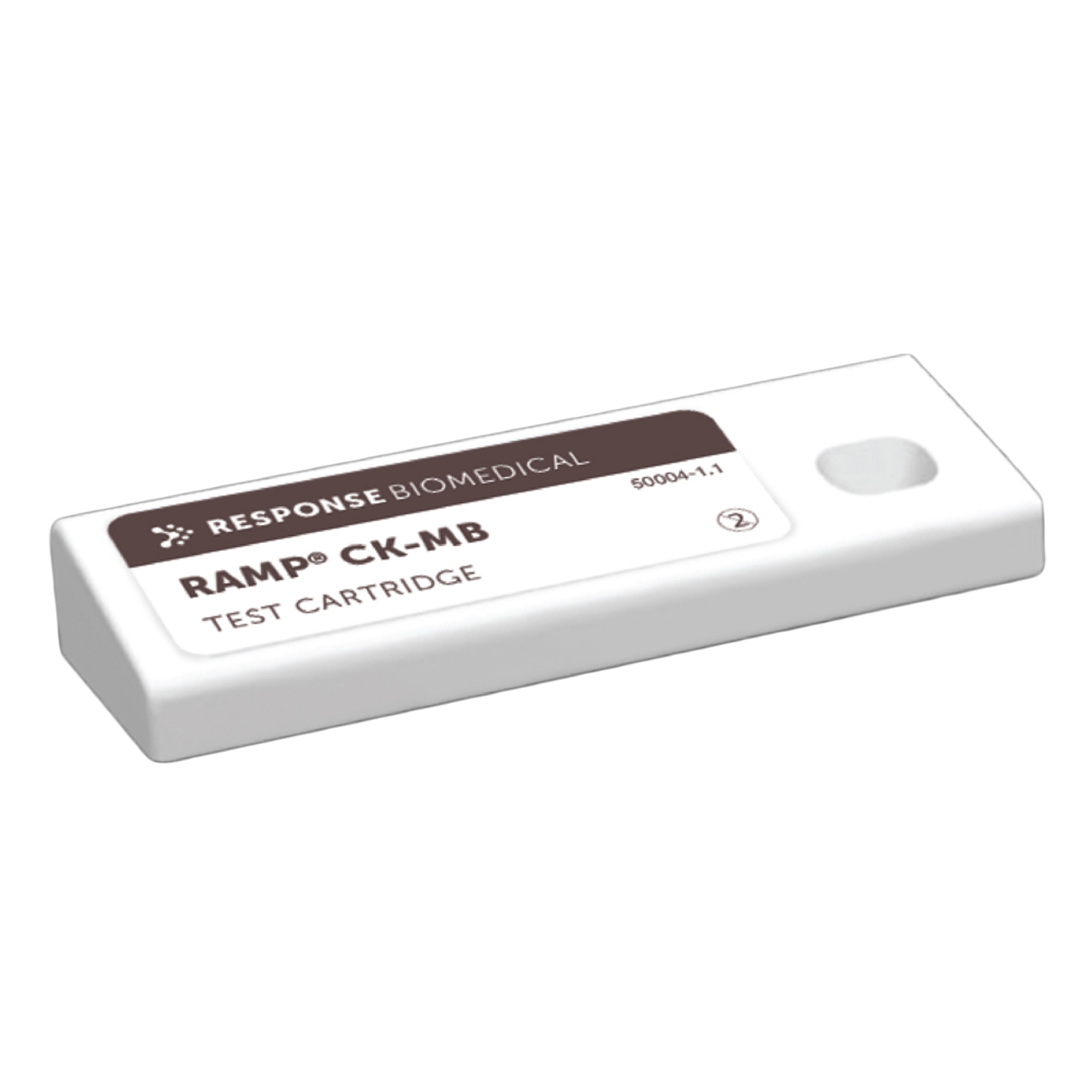

CK-MB

RAMP CK-MB test for quantitative cardiac-marker testing on a compatible RAMP platform. Review the assay-specific intended use and Instructions for Use.

View RAMP CK-MB Test

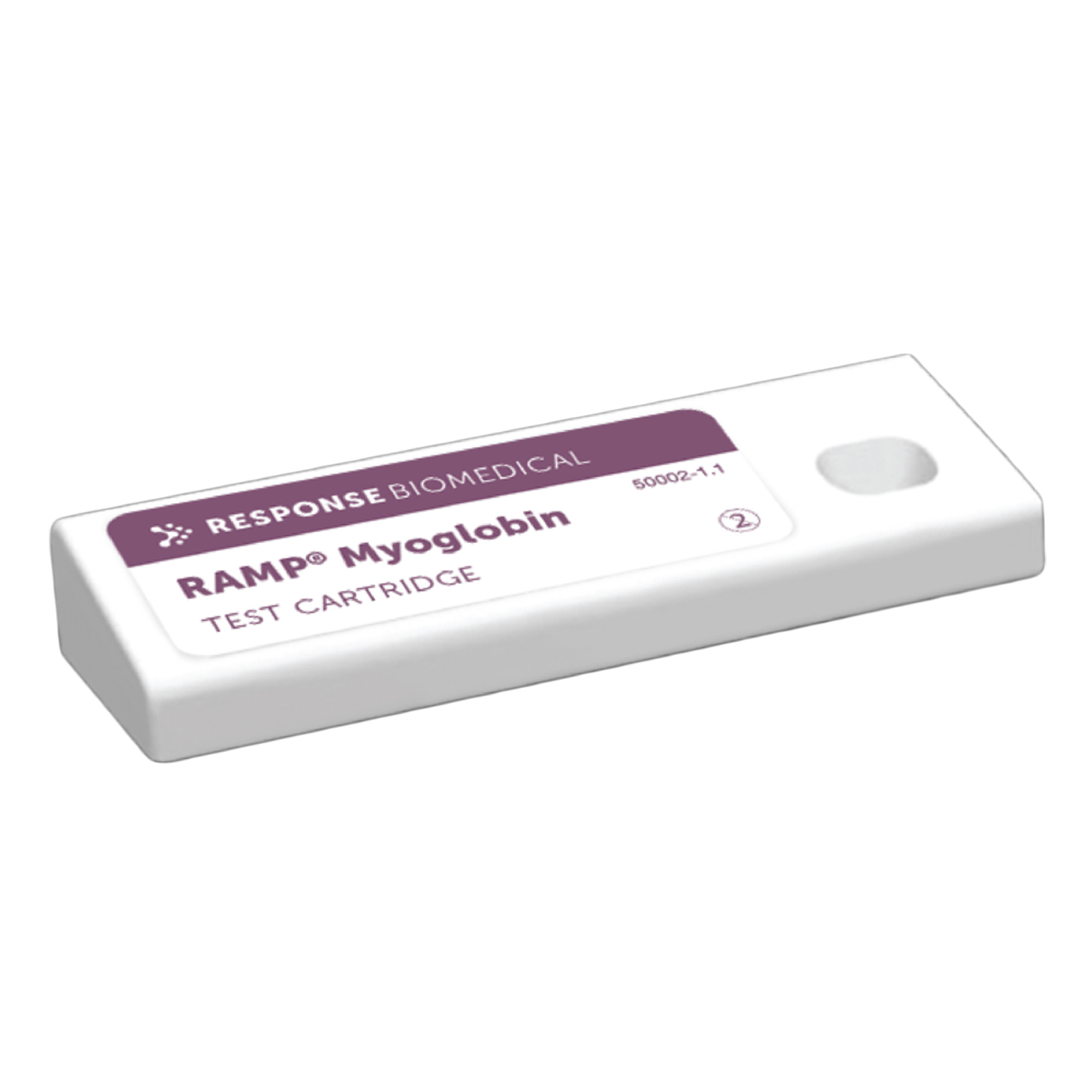

Myoglobin

RAMP Myoglobin test for quantitative cardiac-marker testing on a compatible RAMP platform. Review the assay-specific intended use and Instructions for Use.

View RAMP Myoglobin Test

Additional RAMP Assay: RSV

The RAMP RSV Test is also available for use with a compatible RAMP platform. Review the product page and assay-specific Instructions for Use for specimen, procedure, intended-use and regulatory information.

View RAMP RSV Test

Quality Control and Data Management

Quality-Control Functions

  • Internal electronic quality-control checks
  • External liquid quality-control support
  • Programmable analyte-specific liquid QC ranges
  • Optional QC and operator lockout functions
  • Lot-card information for assay and lot recognition

Connectivity and Accessories

  • LAN and USB connectivity
  • Data-management and result-storage capabilities
  • USB-supported software updates
  • Optional barcode scanner
  • Optional printer

Documentation and Resources

Review the product and clinical resources hosted by Jant. Assay-specific Instructions for Use are available on the corresponding test pages.

RAMP Cardiovascular Testing Brochure RAMP NT-proBNP Method Comparison Study Clinical Benefits of NT-proBNP Patient Access to Diagnostic Testing

RAMP 200 Demonstration Video

Frequently Asked Questions

Each test module contains two testing ports. A RAMP 200 control module can be configured with one, two or three test modules, allowing two, four or six tests to run simultaneously.

The published average time to result is approximately 15 minutes. Exact processing time and workflow requirements depend on the selected assay and its Instructions for Use.

The 2024 cardiovascular brochure lists RAMP NT-proBNP, Troponin I, CK-MB and Myoglobin. The RAMP RSV Test is also linked on this page as an additional assay for a compatible RAMP platform. Confirm current assay availability and order each test kit and control separately unless included in the quotation.

The instrument uses preprogrammed lot cards containing assay- and lot-specific information. According to the product materials, routine user calibration is not required. Laboratories should still follow the operator manual, assay Instructions for Use and applicable quality-control requirements.

Compatible RAMP assays can be run in separate ports for the same or different patients. Each cartridge must be prepared and processed according to its assay-specific Instructions for Use.

Internal electronic quality-control functions are built into the platform, and external liquid quality-control materials are available. Confirm the controls required for each assay and your laboratory’s QC policy before implementation.

Do not apply one CLIA-complexity designation to the analyzer as a whole. Regulatory status and testing requirements are assay-specific. For U.S. customers, the current cardiovascular brochure states that the RAMP Platform must be operated in a laboratory setting when used with the RAMP portfolio of tests.

Confirm the number of test modules, included accessories, barcode scanner or printer needs, connectivity requirements, installation, training, service coverage, test kits, controls and the catalog number assigned to the quoted configuration.

Ordering Information

To discuss configuration, assay availability or pricing, call Jant Pharmacal at 800.676.5565

Catalog Number Description Unit of Measurement
MDC2100 RAMP 200 Control Module Each
MDC3100 RAMP 200 Test Module Each

The final configuration may include one control module and one to three test modules. Test kits, liquid controls, printer, barcode scanner and other accessories are ordered separately unless listed in the quotation.
