Product Overview
The HORIBA Yumizen C1200AL Clinical Chemistry Analyzer combines the high-throughput Yumizen C1200 platform with a rack-based autoloader for laboratories that need additional sample-loading capacity and workflow automation. The system provides throughput of up to 1,200 tests per hour including ISE testing.
The autoloader holds 65 samples in 13 five-position racks and processes up to 800 samples per hour. The base analyzer also provides 84 continuous-access sample positions, a dedicated STAT position, micro-volume sampling, refrigerated reagent and calibrator/control storage, barcode identification and automated sample-integrity checks.
Jant catalog number HORYUMIZENC1200AL identifies the Yumizen C1200AL listing. Contact Jant Pharmacal to confirm current availability, the complete analyzer and autoloader configuration, reagent menu, computer and software, LIS requirements, installation, training, warranty and service support.
Up to 1,200 Tests per Hour
High-throughput clinical chemistry processing, including integrated ISE testing.
65-Sample Autoloader
Thirteen five-position racks provide automated loading for 5, 7 and 10 mL sample tubes.
Continuous and STAT Access
The analyzer retains 84 continuous-access positions and a dedicated external STAT position.
Key Features
- Fully automated clinical chemistry analyzer with rack-based autoloader
- Throughput of up to 1,200 tests per hour including ISE testing
- Autoloader capacity of 65 samples in 13 five-position racks
- Autoloader processing rate of up to 800 samples per hour
- 84-position continuous-access sample tray
- Dedicated external STAT position
- Sample volumes from 1-25 µL in 0.1 µL increments
- Serum, plasma and urine sample compatibility
- Liquid-level, cap/shock and clot detection
- Integrated sample and reagent barcode identification
- Two refrigerated reagent trays with 45 positions each
- 61 refrigerated positions for calibrators and controls
- Two reagent probes with three-part reagent capability
- Open channels for compatible laboratory-validated applications
- 231 reusable reaction cuvettes arranged in 11 replaceable segments
- Two mixers, oil-bath temperature control and seven-step cuvette washing
- Endpoint, rate, two-point rate and immunoassay methods
- 14 photometric wavelengths from 340-884 nm
Expanded Sample-Loading Workflow

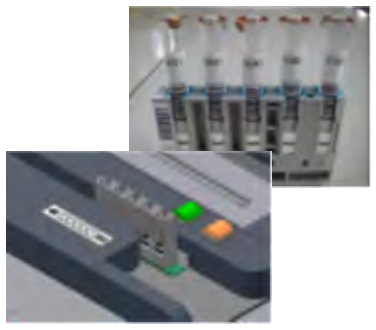

Rack-Based Autoloading
The 65-sample autoloader accepts thirteen five-position racks and supports common 5, 7 and 10 mL sample tubes.

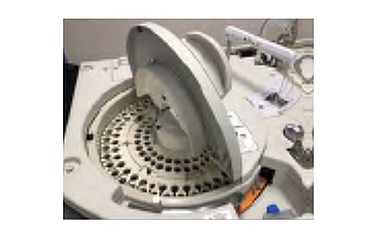

Flexible Sample Access
Continuous access to the analyzer’s 84-position sample tray and a dedicated STAT port helps accommodate changing priorities.

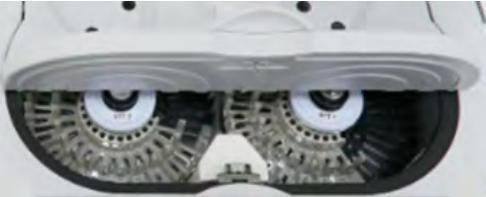

Reagent and Reaction Management
Refrigerated reagents, barcode monitoring, reusable cuvettes, two mixers and automated washing support high-volume routine chemistry operation.
Technical Specifications
| Specification | HORIBA Yumizen C1200AL |
|---|---|
| Jant Catalog Number | HORYUMIZENC1200AL |
| System Type | Fully automated clinical chemistry analyzer with external rack-based autoloader |
| Measurement | Colorimetric and turbidimetric spectrophotometry; indirect ISE |
| Test Throughput | Up to 1,200 tests per hour including ISE |
| ISE Parameters | Sodium, potassium and chloride |
| Analyzer Sample Capacity | 84 samples with continuous access |
| Autoloader Capacity | 65 samples: 13 racks with 5 samples per rack |
| Autoloader Processing Rate | Up to 800 samples per hour |
| Sample Types | Serum, plasma and urine |
| Sample Formats | 5, 7 and 10 mL tubes and sample cups |
| Sample Volume | 1-25 µL in 0.1 µL increments; 22 µL for ISE |
| Automatic Dilution | 1:2 to 1:300 |
| Calibrator and Control Capacity | 61 refrigerated positions |
| Reagent Capacity | Two refrigerated trays with 45 positions each |
| Reagent Volume | 5-300 µL; supports three-part reagent methods |
| Reaction System | 231 reusable cuvettes in 11 replaceable segments; two mixers |
| Reaction Volume | 80-430 µL |
| Optical System | Halogen light source; 14 wavelengths from 340-884 nm; mono- and bichromatic measurement |
| Analyzer Dimensions | Approximately 48 W × 33 D × 43 H inches |
| Analyzer Weight | Approximately 992 lb |
| Autoloader Dimensions | Approximately 46.5 W × 30.3 D × 39.8 H inches |
| Autoloader Weight | Approximately 216 lb |
| Water Requirement | Approximately 20 L/hour; conductivity below 1 µS/cm |
| Power | 2.6 kVA; 110 or 220 V ±10%, 50/60 Hz according to the brochure; confirm site-specific requirements |
Specifications and available configurations may change. Confirm the complete analyzer and autoloader configuration, current reagent menu, water and waste requirements, electrical service, computer and LIS components, installation clearances and service coverage with Jant before ordering.
Complete the Clinical Chemistry Workflow
Connect the Yumizen C1200AL with the appropriate chemistry reagents, calibrators, controls and laboratory-validated applications for the intended test menu.
Open-Channel Reagents
Explore chemistry assays and application resources for compatible analyzer platforms.
Quality Controls
Review quality-control materials for chemistry and related laboratory workflows.
Documentation and Resources
HORIBA Yumizen C1200AL Product BrochureUse current manufacturer instructions, assay-specific labeling and validated application parameters. Contact Jant for current manuals, installation requirements and reagent documentation.
Frequently Asked Questions
The Yumizen C1200AL provides throughput of up to 1,200 tests per hour including ISE testing. The autoloader processes up to 800 samples per hour.
The autoloader holds 65 samples in 13 racks with five samples per rack. It accepts 5, 7 and 10 mL tubes.
Yes. The base analyzer retains an 84-position continuous-access sample tray and a dedicated external STAT position in addition to the rack-based autoloader.
The current HORIBA C1200AL brochure lists serum, plasma and urine. Sample acceptability, preparation and volume requirements depend on the specific assay and its current instructions for use.
The system supports photometric sample volumes from 1-25 µL in 0.1 µL increments. The brochure lists a 22 µL sample volume for indirect ISE testing.
The brochure describes open channels for compatible applications. Each application requires the correct reagents, validated parameters, calibrators, controls and laboratory verification. Confirm current Jant-supported applications before ordering.
The C1200AL adds a 65-sample rack-based autoloader to the base Yumizen C1200 analyzer. Laboratories that do not require the external autoloader can review the HORIBA Yumizen C1200 configuration.
Confirm the complete analyzer and autoloader footprint, delivery path, electrical service, deionized-water and waste requirements, service clearances, computer and software, LIS connection, installation, training and service coverage.
Ordering Information
To confirm availability or request a quote, call Jant Pharmacal at 800.676.5565
| Catalog Number | Description | Unit of Measurement |
|---|---|---|
| HORYUMIZENC1200AL | HORIBA Yumizen C1200AL Clinical Chemistry Analyzer with Autoloader | Each |
Confirm the complete analyzer and autoloader configuration, reagent menu, calibrators, controls, computer and LIS components, installation, training, warranty and service coverage when requesting a quote.
