Product Overview

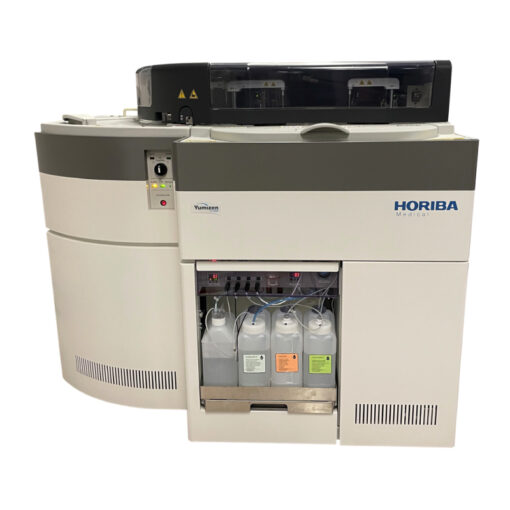

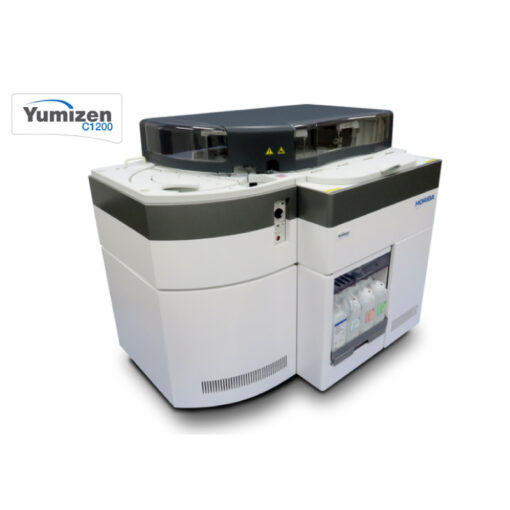

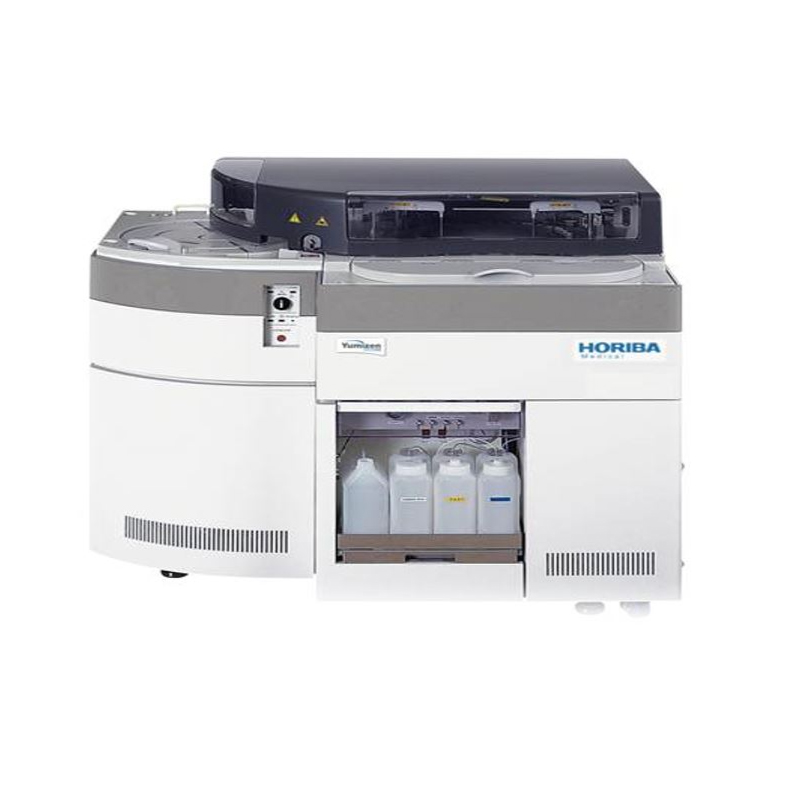

The HORIBA Yumizen C1200 Clinical Chemistry Analyzer is a fully automated, high-throughput system designed to support laboratories with substantial routine chemistry workloads. The analyzer provides throughput of up to 1,200 tests per hour including ISE testing, continuous sample access and a dedicated STAT position.
Micro-volume sampling, refrigerated reagent and calibrator/control storage, barcode identification and automated sample-integrity checks help support efficient daily operation. The system processes serum, plasma and urine specimens and combines photometric, turbidimetric and indirect ISE testing on one platform.
Jant catalog number HORYUMIZENC1200 identifies the standard Yumizen C1200 listing. Contact Jant Pharmacal to confirm current availability, the exact analyzer configuration, reagent menu, computer and software, LIS requirements, installation, training, warranty and service support.
Up to 1,200 Tests per Hour
High-throughput clinical chemistry processing, including integrated ISE testing.
84 Samples with Continuous Access
Continuous sample loading plus a dedicated external STAT position supports changing laboratory priorities.
Micro-Volume Sampling
Sample volumes from 1-25 µL help conserve limited specimens and reduce repeat draws.
Key Features
- Fully automated clinical chemistry analyzer
- Throughput of up to 1,200 tests per hour including ISE testing
- Photometric, turbidimetric and indirect ISE measurement
- Sodium, potassium and chloride ISE parameters
- 84-position sample tray with continuous access
- Dedicated external STAT position
- Sample volumes from 1-25 µL in 0.1 µL increments
- Serum, plasma and urine sample compatibility
- Liquid-level, cap/shock and clot detection
- Integrated sample and reagent barcode identification
- Two refrigerated reagent trays with 45 positions each
- 61 refrigerated positions for calibrators and controls
- Two reagent probes with three-part reagent capability
- 231 reusable reaction cuvettes
- Two mixers and an oil-bath reaction system
- Endpoint, rate, two-point rate and immunoassay methods
- 14 photometric wavelengths from 340-884 nm
Designed for High-Throughput Chemistry Workflows

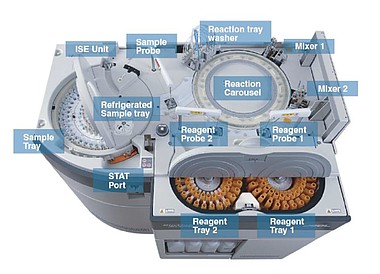

Sample Management
Continuous loading, micro-volume sampling, barcode identification, specimen-integrity checks and dedicated STAT access support routine and priority samples.

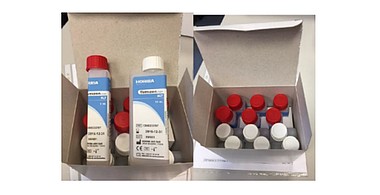

Reagent Management
Refrigerated reagent storage, integrated barcode identification and software monitoring of onboard stability and remaining tests help laboratories manage inventory.
Reaction and Maintenance
Reusable cuvettes, two mixers, an oil-bath reaction system and automated startup and shutdown routines support consistent daily operation.
Technical Specifications
| Specification | HORIBA Yumizen C1200 |
|---|---|
| Jant Catalog Number | HORYUMIZENC1200 |
| System Type | Fully automated clinical chemistry analyzer with continuous sample access and dedicated STAT position |
| Measurement | Colorimetric and turbidimetric spectrophotometry; indirect ISE |
| Throughput | Up to 1,200 tests per hour including ISE |

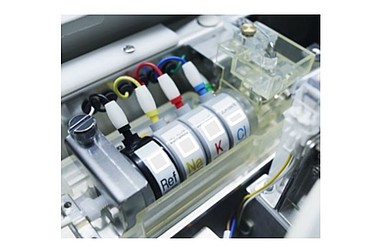

| ISE Parameters | Sodium, potassium and chloride |
| Sample Capacity | 84 samples with continuous loading |
| Sample Types | Serum, plasma and urine |
| Sample Formats | 5, 7 and 10 mL tubes and sample cups |
| Sample Volume | 1-25 µL in 0.1 µL increments; 22 µL for ISE |
| Automatic Dilution | 1:2 to 1:200 |
| Calibrator and Control Capacity | 61 refrigerated positions |

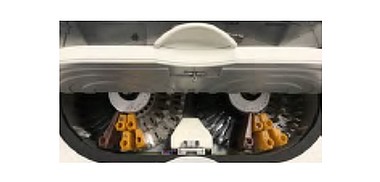

| Reagent Capacity | Two refrigerated trays with 45 positions each |
| Reagent Volume | 5-300 µL; supports three-part reagent methods |
| Reaction System | 231 reusable plastic cuvettes with two mixers |
| Reaction Volume | 80-430 µL |
| Optical System | Halogen light source; 14 wavelengths from 340-884 nm; mono- and bichromatic measurement |
| Analyzer Dimensions | Approximately 48 W × 33 D × 43 H inches |
| Analyzer Weight | Approximately 992 lb |
| Water Requirement | Approximately 20 L/hour; conductivity below 1 µS/cm |
| Power | 2.6 kVA; confirm voltage, frequency and dedicated electrical requirements for the supplied configuration |
Specifications and available configurations may change. Confirm the analyzer configuration, current reagent menu, water and waste requirements, electrical service, computer and LIS components, installation clearances and service coverage with Jant before ordering.
Complete the Clinical Chemistry Workflow
Connect the Yumizen C1200 with the appropriate chemistry reagents, calibrators, controls and laboratory-validated applications for the intended test menu.
Open-Channel Reagents
Explore chemistry assays and application resources for compatible analyzer platforms.
Quality Controls
Review quality-control materials for chemistry and related laboratory workflows.
Documentation and Resources
Development of the Yumizen C1200 Chemistry SystemThis Jant-hosted document is a HORIBA technical article issued in 2020, not the current product brochure. Use current manufacturer instructions, assay-specific labeling and validated application parameters. Contact Jant for the latest approved brochure, manuals, installation requirements and reagent documentation.
Frequently Asked Questions
The Yumizen C1200 provides throughput of up to 1,200 tests per hour including ISE testing.
The analyzer provides 84 routine sample positions with continuous access, plus a dedicated external STAT position for priority testing.
HORIBA documentation lists serum, plasma and urine. Sample acceptability, preparation and volume requirements depend on the specific assay and its current instructions for use.
The system supports photometric sample volumes from 1-25 µL in 0.1 µL increments. HORIBA documentation lists a 22 µL sample volume for indirect ISE testing.
Two refrigerated reagent trays provide 45 positions each. Barcode identification and software monitoring help track reagent identity, onboard stability and remaining test volume.
HORIBA documentation for the platform describes programmable applications and open channels. Each application requires compatible reagents, validated parameters, calibrators, controls and laboratory verification. Confirm current Jant-supported applications before ordering.
The C1200AL configuration adds an autoloader to the base Yumizen C1200 analyzer for rack-based sample loading. Review the HORIBA Yumizen C1200AL page or contact Jant to determine which configuration fits the laboratory’s workflow.
Confirm the analyzer configuration, electrical service, deionized-water and waste requirements, floor space and service clearances, computer and software, LIS connection, delivery access, installation, training and service coverage.
Ordering Information
To confirm availability or request a quote, call Jant Pharmacal at 800.676.5565
| Catalog Number | Description | Unit of Measurement |
|---|---|---|
| HORYUMIZENC1200 | HORIBA Yumizen C1200 Clinical Chemistry Analyzer | Each |
Confirm the analyzer configuration, reagent menu, calibrators, controls, computer and LIS components, installation, training, warranty and service coverage when requesting a quote.
