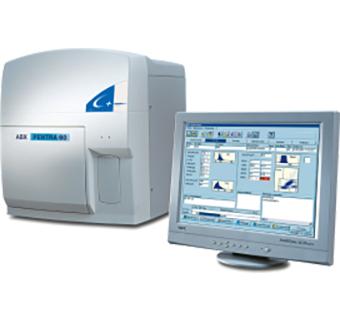

Product Description
- 5-Part Differential analysis
- Closed tube sampling
- Workstation included
- Data management on stand-alone PC.
- Micro-sampling from whole blood (CBC: 30 µL – DIFF: 53 µL).
- Cytochemistry, Impedance (real cell volume measurement) & Optical (analysis of the internal cellular structure by measuring light absorbance) – DHSS* Technology.
- Perfect homogenization of blood samples with reagents – MDSS** Technology.
- Throughput: Up to 60 samples/hour.
- Reagents: Only 4 onboard reagents and 1 diluent.
- Perfect differentiation of the 5 WBC sub-populations with DHSS* Technology.
- 3 histograms for RBC, BAS/WBC and PLT together with the 5 DIFF Matrix.
- Basophils counted through specific channel.
- High resolution matrix.
Technical
| Weight | 77 lbs / 35 kg | ||
| Power supply | 100 to 240 V (± 10%) – 50 to 60 Hz | ||
| Dimensions | 20.3 x 17.5 x 19 in / 51,5 cm x 44,5 cm x 48 cm | ||
| Printer | Laser printer | ||
| Throughput | 60 tests/hour | ||
| Data management | Color screen: 15 in. monitor (800 x 600px)
Windows XP Prof.TM User-defined flagging limits Transmit patient & QC to LIS Uni-directional or bi-directional connection Communication Protocols: ABX / ASTM CD-ROM drive / Floppy disk 2 serial ports minimum USB Keyboard / USB Mouse |
||
| Memory | 10,000 results + Graphics | ||
| Quality Control Management | 12 selectable QC files
XB: 60 Operator selectable batches with statistics (20 samples per batch) Within run Levey-Jennings Graphs |
||
| Logs | Reagents, calibration, maintenance, errors, blank cycle | ||
Samples
| 60 samples/hour (closed tube) | |
|---|---|
| Parameters (26) | WBC, NEU# & NEU%, LYM# & LYM%, MON# & MON%, EOS# & EOS%, BAS# & BAS%, RBC, HGB, HCT, MCV, MCH, MCHC, RDW, PLT, MPV |
| Graphs | High-definition LMNE matrix PLT, RBC, WBC/BAS curves |
| Blood Volume | CBC mode: 30 µL CBC + DIFF mode: 53 µL |
| Stability | 48 hours post-draw stability |
| Operating sample mode | Closed tube |
| Identification | Alphanumeric. Bar-code reader (optional) |
Results
| Parameters | Precision (%CV) | Linearity |
|---|---|---|
| WBC | < 2.0 | 0-120 x 10³/µL |
| RBC | < 2.0 | 0-8 x 106/µL |
| HGB | < 1.0 | 0-24 g/dl |
| HCT | < 2.0 | 0-67% |
| PLT (whole blood) | < 5.0 | 0-1900 x 10³/µL |
| PLT (PLT concentrate) | < 5.0 | 0-2800 x 10³/µL |
Features & Benefits
- Throughput: Up to 60 samples/hour.
- Reagents: Only 4 onboard reagents and 1 diluent.
- Perfect differentiation of the 5 WBC sub-populations with DHSS* Technology.
- 3 histograms for RBC, BAS/WBC and PLT together with the 5 DIFF Matrix.
- Basophils counted through specific channel.
- High resolution matrix.
* DHSS: Double Hydrodynamic Sequential System (HORIBA Medical Patent)
** MDSS: Multi-Distribution Sampling System (HORIBA Medical Patent)
